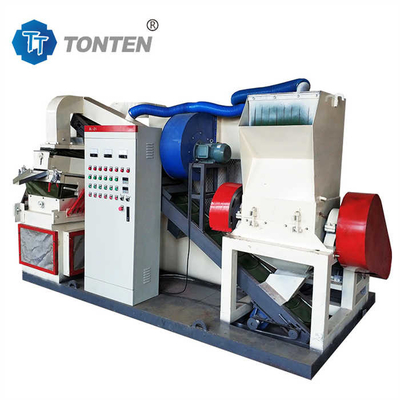

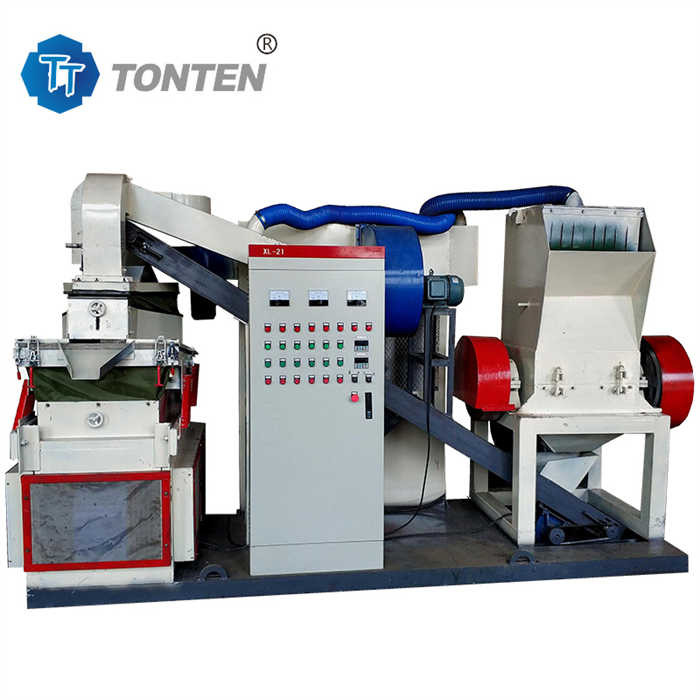

Waste Wire Recycling Production Line Wire Copper Plastic Separator Machine
Product Details:
| Place of Origin: | China |
| Brand Name: | TONTEN |
| Model Number: | TT-800 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Set |
|---|---|
| Packaging Details: | Small model export wooden packaging, large model load in full container |
| Delivery Time: | 7 working days |
| Payment Terms: | T/T |
| Supply Ability: | 10 Sets/Month |
|
Detail Information |
|||
| Features: | Environmental Friendly | Product Name: | Copper Wire Recycling Plant |
|---|---|---|---|
| Powder: | 57kw | Capacity: | 300-600kg/h |
| Application: | Scrap Copper Wire Crushing And Separation | Dimension: | 4000x2000x2200mm |
| Machine Weight: | 3800kgs | Warranty: | 24 Months |
Product Description
Waste Wire Recycling Production Line Wire Copper Plastic Separator Machine
Product Description:
The copper wire recycling machine is suitable for all grades of cables and wire stripping machines, various miscellaneous cables, after crushing, separation by vibrating screen, separation by vibration, and separation by washing. It can completely separate copper and plastic, and achieve the purpose of comprehensive utilization, with high economic benefits. And there is no dust and no secondary pollution. In addition, the equipment is an overall modular structure, which is easy to install and debug, and it is also convenient to transport. After the customer purchases it,copper wire recycling machine can be put into production by connecting the power supply, and the performance is stable.
Working principle:
copper wire recycling machine adopts shredder to crush the materials into, and then through the shear crushing of the secondary crusher, and then through the high-precision air separation to obtain plastics and copper. The unclean plastics are sorted by the electrostatic separator to ensure the reuse rate of copper.
Specification:
| Model | TT-800 |
| Dimension | 4000x2000x2200mm |
| Capacity | 300-600kg/h |
| Host powder | 45kw |
| Sorting power | 5.2kw |
| Dust removal power | 4.5kw |
| Blade material | 9CrSi |
| Blade number | 14 |
| Machine weight | 3800 kgs |
Advantage of copper wire recycling machine:
1.One time feeding, the copper wire recycling machine is in the form of assembly line, and the degree of automation is high
2.Fully automatic intelligent control, copper wire recycling machine can be produced by one person. The advanced dust collection device not only improves the quality of recycled copper, but also recycles plastics.
3.Fully automatic mechanical separation separates copper and plastic, and achieves the purpose of comprehensive utilization, which has high economic benefits.
4.Compact structure, beautiful appearance, reasonable layout, convenient installation, full-automatic intelligent control, so that the equipment can feed evenly and operate intelligently.
TONTEN Copper wire recycling plant has unique structure, high process capacity and low power consumption.With high separation rate,controlled by PLC, the separation is conducted by several parts. This equipmenthas not only improved the purity of copper, but also reduced the pollution to the environment.
Copper wire recycling machine shipping
Copper wire recycling plant is relatively advanced technology for processing waste cables.
The Copper wire recycling plant has a good effect in processing waste cables. After a series of processing methods, the waste cables can be obtained into pure copper rice particles and plastics. The quality of the processed copper particles is equivalent to that of electrolytic copper and can be used directly.
We Support:
-Strong R&D capabilities
-Support solution customization:
-Your OEM ODM custom
-Your logo and color
-Your voltage/capacity
-Large machinery has stable quality
-Controllable delivery time
-Lifetime After-sales
-Factory machine inspection:
-Video call to see the factory
-Provide test video before delivery
