Metallurgy Rotary Kiln Dryer Cement Electric Gas Roaster Rotary Kiln
Product Details:
| Place of Origin: | China |
| Brand Name: | TONTEN |
| Model Number: | TT-YZ1225 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Set |
|---|---|
| Packaging Details: | standard international export packing, container, wooden box or as required |
| Delivery Time: | 8-10 work days |
| Payment Terms: | T/T |
| Supply Ability: | 20 Sets per month |
|
Detail Information |
|||
| Product Name: | Rotary Kiln | Diameter: | 1200mm |
|---|---|---|---|
| Length: | 2500mm | Capacity: | 3t/h |
| Power: | 22kw | Application: | Metallurgy, Bauxite, Aluminum Hydroxide, Lime, Dolomite |
| Color: | Customized | Port: | Tianjin,Qingdao,Shanghai,Ningbo |
Product Description
Metallurgy rotary kiln dryer cement electric gas roaster rotary kiln
Product Description:
The appearance of the rotary kiln is similar to that of a rotary bed. Rotary kilns can be divided into cement kilns, metallurgical chemical kilns and lime kilns according to the materials they process. Cement kilns are mainly used to calcine cement clinker, and are divided into two categories: dry-process cement kilns and wet-process cement kilns. Metallurgical chemical kilns are mainly used in the metallurgical industry for magnetization roasting of lean iron ore in steel plants; oxidation roasting of chromium and nickel iron ores; roasting of high-alumina vanadium ore in refractory plants and roasting of clinker and aluminum hydroxide in aluminum plants; and roasting of chromium ore sand and chromium ore powder in chemical plants. Lime kilns (i.e., active lime kilns) are used to roast active lime and light-burned dolomite for use in steel plants and ferroalloy plants.
Specification:
|
Model
|
Cylinder diameter
(mm) |
Cylinder length
(mm) |
Capacity
(t/h) |
Rotate speed
(rpm) |
Power
(kw) |
Weight
(t) |
|
YB1626
|
1600/1400
|
26000
|
0.7～1.1
|
0.41～3.85
|
18.5
|
38.621
|
|
YB1939
|
1900/1600
|
39000
|
2.2～2.7
|
0.27～2.58
|
22
|
60.841
|
|
YB2245
|
2200/2000
|
45000
|
2.5～3.5
|
0.25～2.28
|
30
|
88632
|
|
YB2545
|
2500/2200
|
45000
|
4.5～6.2
|
0.25～2.18
|
45
|
102.367
|
|
YB2845
|
2800/2500
|
45000
|
7.5～10
|
0.68～1.45
|
55
|
192.622
|
|
YB3560
|
3500/3000
|
60000
|
23`32
|
0.65～2.28
|
125
|
310.263
|
Applications:
1. In the building materials industry, rotary kilns are used to calcine clay, limestone, and dry slag in addition to cement clinker; in the production of refractory materials, rotary kilns are used to calcine raw materials to stabilize their size, increase their strength, and then process them into shape.
2. In the ore dressing process, rotary kilns are used to magnetize and roast lean iron ore to change the original weak magnetism of the ore into strong magnetism, which is conducive to magnetic separation.
3. In the chemical industry, rotary kilns produce soda, calcine phosphate fertilizers, barium sulfide, etc. This method has the advantages of low energy consumption and low electricity consumption.
Features of Rotary Kiln:
Rotary kiln has simply structure, easy operation in producing, less wearing parts, high efficiency,it's used in the cement plant to calcine high grade cement, at the same time can be used in metallurgy,chemical,constructure ect. rotary kiln features in strong structure, stable operation, high-quality products from the kiln, and we can offers advanced efficient shaft preheater, five-grade cyclone preheater.

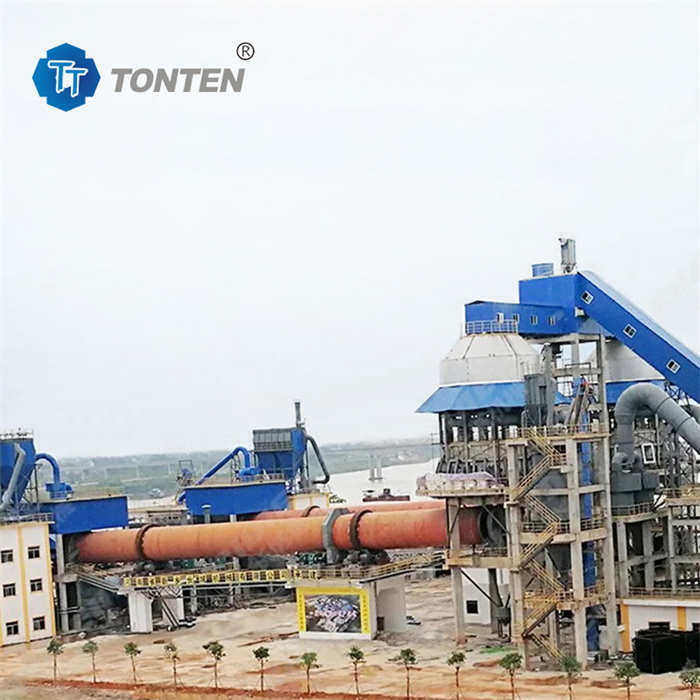

Customer site:
Our service:Service---customers is the first!
1. Pre-sale services:
Act as a good adviser and assistant of clients, enable them to get rich and generous returns on their investments.
1>. Select equipment model;
2>. Design and manufacture Rotary Kiln according to clients' special requirement;
3>. Train technical personnel for clients.
2. Services during the sale:
Respect clients, devote ourselves to improving the total value of clients.
1>. Pre-check and accept products ahead of delivery;
2>. Help clients to draft solving plans.
3. After-sale services:
Provide considerate services to minimize clients' worries.
1>. Assist clients to prepare for the first construction scheme;
2>. Install and debug the equipment;
3>. Train the first-line operators;
4>. Examine the equipment;
5>. Take initiative to eliminate the troubles rapidly;
6>. Provide perfect service;
7>. Provide technical exchanges.
