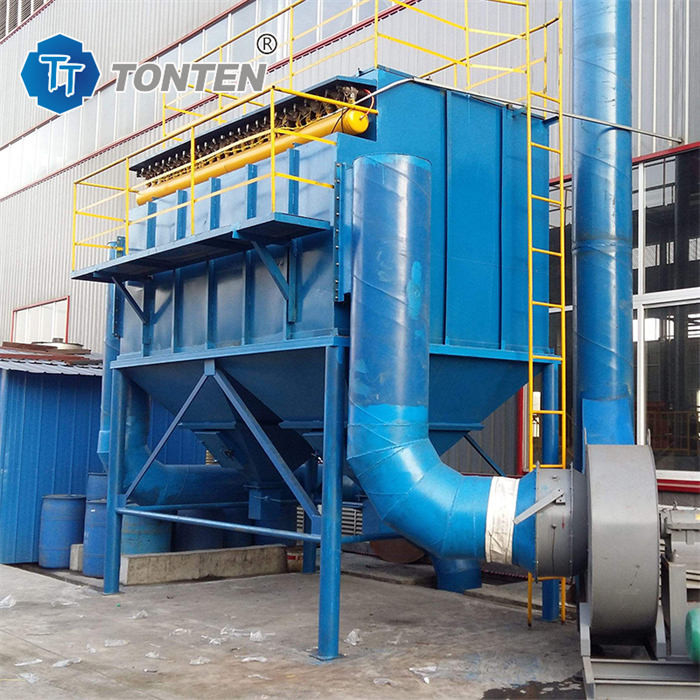

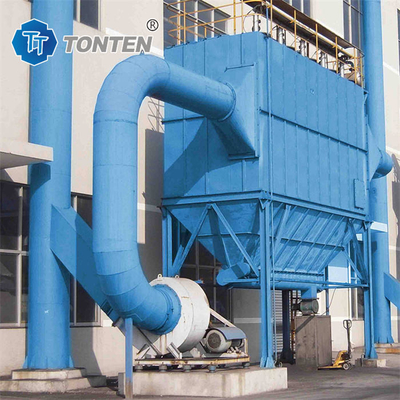

Workshop Dust Collector Dust Extraction System Mine Carpentry Dust Collector

Workshop Dust Collector Dust Extraction System Mine Carpentry Dust Collector

Product introduce:
The bag dust collector consists of a bag chamber, a pre-dust collection chamber, a clean air chamber, a porous plate, and a filter bag skeleton. It is a dry dust filter device.Dust collector suitable for collecting fine, dry, non-fibrous dust. Injection system: including main air pipe, injection pipe, and flushing valve. The filter bag is made of textile filter cloth or non-woven felt. The dust-containing gas is filtered by the filtration function of the fiber fabric. When the dust-containing gas enters the bag After the dust collector, dust with large particles and heavy specific gravity settles down due to the effect of gravity and falls into the ash hopper. When the gas containing fine dust passes through the filter material, the dust is blocked, allowing the gas to be purified.

Working principle:
After the dust-containing gas enters the bag dust collector, it enters the ash hopper through the air inlet. The coarse dust particles fall directly into the bottom of the ash hopper. The fine dust particles enter the middle and lower boxes upward with the turning of the air flow. The filtered gas enters the upper box. to the clean gas collecting pipe-exhaust duct, and then discharged to the atmosphere through the exhaust fan.

Features:
1. The inlet and outlet air ducts are compactly arranged and the air flow resistance is small.
2. The dust collector adopts split-chamber air-stop pulse jet dust cleaning technology, which has strong dust cleaning ability, high dust removal efficiency, low emission concentration, low energy consumption, and stable and reliable operation.
3. The body adopts air-tight design and has good sealing performance.
4. Reduces dust cleaning energy consumption and compressed air consumption can be greatly reduced. Double the life of filter bags and valve plates
5. Use the upper bag extraction method. After the skeleton is pulled out when changing bags, the dirty bags are put into the ash hopper at the bottom of the box and taken out from the manhole.

Parameter:
