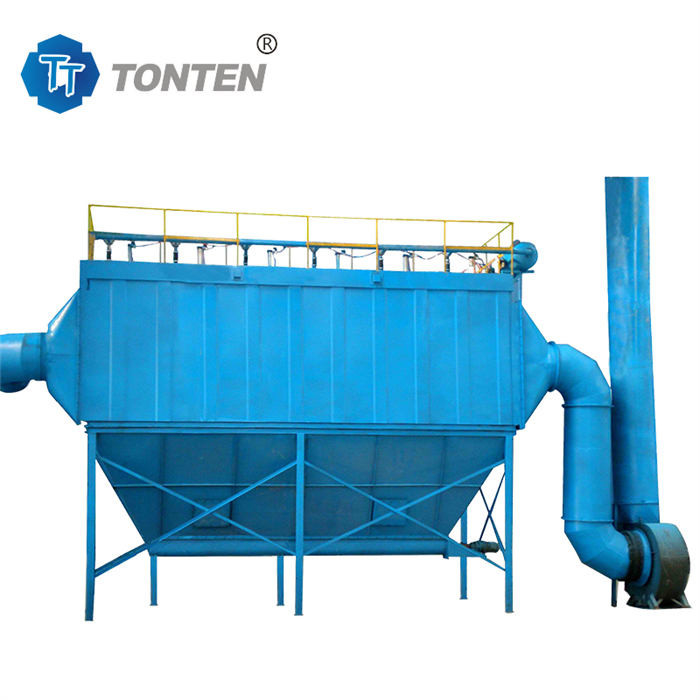

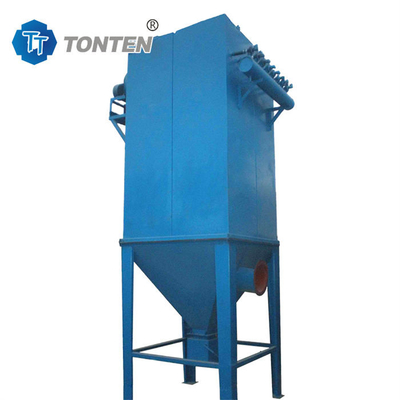

Bag Filter Dust Collector Cement Plant Dust Collector Extraction

Bag Filter Dust Collector Cement Plant Dust Collector Extraction

Main components and uses:
1. Filter bag: It is the core component of dust removal and is used to capture dust particles.
2. Filter chamber: a closed space equipped with filter bags, used to collect and store filtered dust.
3. Inlet pipe: introduce dust-containing gas into the filter chamber.
4. Exhaust duct: discharge the filtered purified gas.
5. Dust cleaning system: Regularly clean the dust accumulated on the filter bag through vibration, backflushing, etc.
6. Dust hopper: collects dust after cleaning to facilitate subsequent processing.
7. Fan: Provides the required exhaust air and pressure for the entire system.

8. Stable operation and simple maintenance: the key parts of the pulse jet baghouse are reliable in quality and highly automated.The pulse jet baghouse uses high-temperature flue gas to blowback and effectively prevent dew-forming and bag-pasting.

Application materials and fields:
Metallurgy: steel plants, foundry workshops, etc.
Chemical industry: fertilizer factory, pharmaceutical factory, etc.
Mining: mining, mineral processing, coal, etc.
Electricity: power plants, boiler rooms, etc.
Food: grain processing, wood processing, etc.

Features and benefits:
1. Environmentally friendly, the collected dust can be recycled.
2. It has a wide range of applications and can handle fine and lightweight dust in various industries and scenes.
3. The dust collector has low energy consumption, small pressure drop and low operating costs.
4. The dust collection efficiency can reach over 99.9%, greatly reducing dust emissions.
5. Simple structure, no complex mechanical parts, and easy maintenance.
6. Low energy consumption, small pressure drop, and low operating costs.
7. Safe and reliable, fully enclosed operation to prevent secondary pollution.

8. Using pulse injection way of ash removal, with good soot cleaning effect, high purification efficiency.

Parameter:
