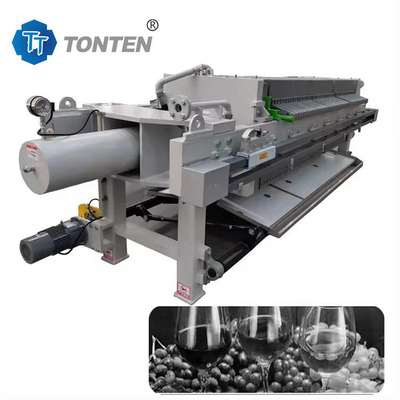

Fully Automatic Plate Frame Sludge Press Machine Filter Machine For Dewatering

Sludge Dewatering Plate Frame Filter Press Machine Filter Press

Filter press machine introduce:

Plate Frame Filter Press Machine mud cake filtered by the filter press has a higher solid content and an excellent separation effect,is critical to optimal operation of the dewatering system.

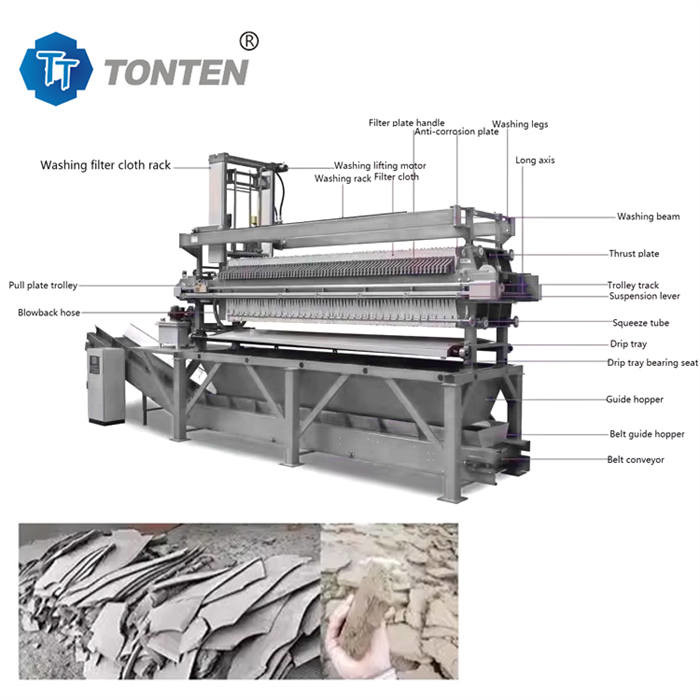

The main components and uses of plate and frame filter press:
1. Filter plate: Made of metal or plastic, used to support filter media and filter cake.
2. Filter cloth: used as filter media for solid-liquid separation.
3. Feed port: Send liquid materials containing solid particles into the filter cavity.
4. Slag outlet: The filtered solid material is discharged from here.
5. Filtrate outlet: The filtered clear liquid is discharged from here.
6. Pressurizing device: Apply pressure to the material through air pressure, hydraulic pressure or mechanical pressure to promote solid-liquid separation.
7. Transmission mechanism: drives the filter plate to open and close to achieve automatic continuous filtration.
8. Cleaning system: Backwash the filter cloth regularly to keep the filter cloth smooth.

Application areas:
Plate and frame filter presses are widely used in chemical, metallurgical, mining, pharmaceutical, food and other industries
Chemical industry: dyes, titanium dioxide, ceramic mud, etc.
Metallurgy: copper slag, alumina, etc.
Mining: coal slime, slurry, ore dressing tailings, etc.
Pharmaceuticals: traditional Chinese medicine residues, chemicals, etc.
Food: starch, yeast cells, etc.

Features:
1. High filtration efficiency, greatly improving solid-liquid separation efficiency.
2. Significantly reduce energy consumption and reduce secondary pollution,
3. It occupies a small area and is easy to integrate into the process flow.
4. The slag quality is good and the filter cake produced has low moisture content and can be directly dried and put into use.
5. Can operate continuously or intermittently, with strong adaptability and strong working ability.

6. Simple structure in linear type ,easy in installation and maintation.

7. Lower residual moisture, high capture rate.

8. Plate and frame filter presses solid and robust design for demanding operating conditions, Long service life
