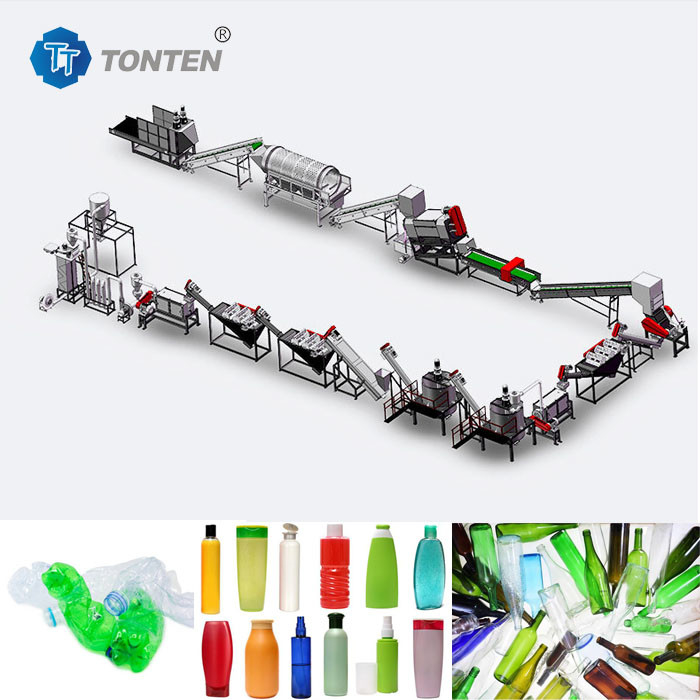

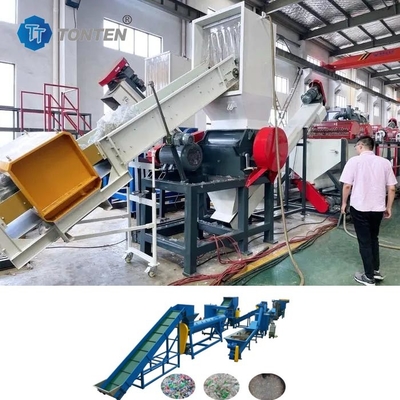

Plastic Crushing Recycling Production Line Mineral Water Bottle Recycling
Product Details:
| Place of Origin: | China |
| Brand Name: | TONTEN |
| Model Number: | TT32-357 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden box |
| Delivery Time: | 5-7 work days |
| Payment Terms: | T/T |
| Supply Ability: | 20 units/month |
|
Detail Information |
|||
| After-sales Service: | 1 Year | Material Moisture Content: | 20% |
|---|---|---|---|
| Product Weight: | 2500(kg) | Applicable Raw Materials: | PVC,PET,PS,ABS,PE |
| Dimensions: | 1600*1200*1600 (mm) | Product Usage: | Plastic Recycling |
| Degree Of Crushing: | Medium Crusher | Drive Mode: | Electric |
Product Description
Plastic Crushing Recycling Production Line Mineral Water Bottle Recycling
The concept of Plastic Crushing Recycling Production Line
The crusher is a piece of equipment specially used to crush plastic materials. It can break various plastic products, waste plastic products, etc. into small pieces or powder for subsequent recycling and reuse. Plastic crusher has the characteristics of energy saving and environmental protection. It is one of the important equipment in the field of plastic recycling and recycling.
How the Plastic Crushing Recycling Production Line works
The waste plastic crusher mainly adopts optimized design and uses a high-speed rotating cutterhead and a fixed cutter seat to crush the plastic blocks into plastic granules and separate impurities to achieve the purpose of recycling and reusing waste plastics.
Plastic Crushing Recycling Production Line Steps
1. Feeding: Put the waste plastic into the crusher through the feeding port.
2. Crushing: The waste plastic is cut and hit by the blade to break it into smaller pieces.
3. Crushing: The broken plastic fragments are further crushed through screens or rotating blades to turn them into finer particles or powder.
4. Separation: Separate the particles or powder from other impurities through a vibrating screen or air flow separation device.
5. Collection: Collect the crushed plastic particles or powder, which can be transported to the next processing or packaging process by blowing or vacuum systems.
Advantages of Plastic Crushing Recycling Production Line
1.Efficiency: The plastic crusher can quickly break plastic materials into small particles, greatly improving the crushing efficiency and reducing manual labor intensity.
2.Resource recycling: Large plastic products such as bottles, containers, etc. can be broken down into small particles, thereby reducing the volume of plastic and facilitating better transportation and storage. These small particles can be used in the production of recycled plastics, promoting resource recovery and sustainability.
3.Versatility: Not only can it handle various types of plastic products, it can also be applied to other products that need to be broken, such as paper, etc.
4.Wide range of application: Plastic crusher is suitable for various types and hardness of plastic materials, and can meet the needs of different fields.
5.Environmental protection and energy saving: The plastic crusher will not produce too much noise and pollution during the crushing process. At the same time, it uses advanced energy-saving technology to effectively reduce energy consumption.
Plastic Crushing Recycling Production Line technical parameters
| model | SWP160 | SWP200 | SWP210 | SWP300 | SWP320 | SWP380 | SWP400 | SWP630 |
| Rotary knife diameter | 160 | 200 | 210 | 300 | 320 | 380 | 400 | 630 |
| Number of rotary knives (Bundle) |
8 | 3 | 3 | 3 | 3 | 3 | 5 | 9 |
| Rotating knife revolutions (r/min) |
500 | 870 | 500 | 640 | 650 | 650 | 500 | 480 |
| Number of fixed knives (Bundle) |
2 | 2 | 2 | 3 | 2 | 6 | 2 | 4 |
| Sieve plate aperture (mm) |
Φ8 | Φ8 | Φ8 | Φ12 | Φ14 | Φ14 | Φ10 | Φ10 |
| breaking ability (kg/h) |
100-200 | 50-110 | 80-120 | 50-250 | 250-350 | 300-500 | 350-450 | 700-850 |
| Power(kw) | 5.5 | 4 | 4 | 18.5 | 22 | 27.5 | 15 | 44 |
