OEM Scrap Steel Shredder Crusher Metal Iron Scrap Recycling Machine
Product Details:
| Place of Origin: | China |
| Brand Name: | TONTEN |
| Model Number: | TT-MC1000 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Export wooden packing or in container |
| Delivery Time: | 7-10 work days |
| Payment Terms: | T/T |
| Supply Ability: | 30 Sets per month |
|
Detail Information |
|||
| Power: | 75kw | Capacity: | 1-2t/h |
|---|---|---|---|
| Final Product Size: | Customize | Blades Material: | High Quality Carbon Steel |
| Machine Type: | Crushing Waste Metal Recycling Metal Scraps | Accessory Equipment: | Conveyor,Magnetic Separation System |
| Rotating Speed: | 1250 | Suit: | Waste Metal |
| Highlight: | OEM scrap steel shredder,scrap steel shredder Crusher,OEM iron scrap recycling machine |
||
Product Description
Metal Crushing Car Panel Recycling Line Scrap Metal Steel Crusher Machine
Product introduce:
The metal crusher is scrap aluminum and scrap steel crushing equipment, including a feeding conveyor structure, a crusher structure, a discharging conveyor structure, a magnetic separator structure, and a recycling machine structure set in sequence. The scrap steel and scrap iron crusher structure includes a material press. The flat chuck, breaker hammer structure and the counterattack lining structure inside the equipment are combined to form a complete equipment production process to improve the material processing efficiency and provide the sorting effect of various metals and impurities such as scrap steel and scrap aluminum.

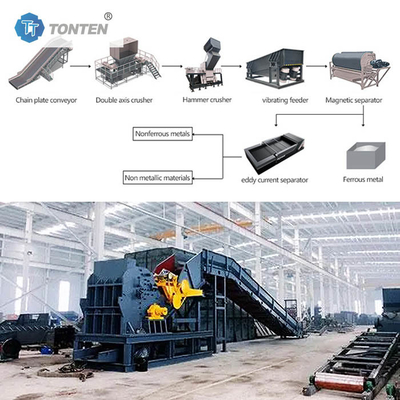

Scrap metal production line process flow:
The scrap metal is extruded, sheared, and shredded into uniformly sized pieces by the two rows of counter-rotating cutter shafts of the metal shredder. The scrap metal is then fed into the metal crusher through a conveyor belt, and is hit by the high-speed rotation of the hammer head in the crushing chamber,the paint,plastic and other impurities on the surface of the scrap steel fall off and are broken into granular shapes. After being transported from the discharge port,the impurities and scrap steel broken materials are sorted out by the magnetic separator. What comes out of the conveyor is pure broken material.
Advantage:
1. Support customer customization, and can be equipped with a forced feeder to make feeding more convenient
2. Diversification of cutting tools. For light and thin materials, the metal crusher adopts a V-shaped design, which is conducive to coarse crushing and increases production capacity;
3. TONTEN machinery metal crusher machine adopts surfacing structure, the tool has long service life and is easy to maintain.
4. The metal crusher machine of cubes in the metal crusher is significantly increased, and the spherical particles are more uniform.
5. Equipped with variety of crushing chamber types, it is flexible in application and has strong adaptability.
Technical specification:
|
Model |
Power(kw) |
Capacity(t/h) |
Weight(t) |
Dimensions(mm) |
|
TT-MC1000 |
35 |
1—2 |
2—3 |
3600x1300x2800 |
|
TT-MC1300 |
55 |
3—5 |
3—6 |
4200x1800x3300 |
|
TT-MC1600 |
70 |
6—8 |
22-25 |
4500x2000x3500 |
|
TT-MC1800 |
110 |
10—12 |
27-32 |
4600x2200x4000 |
|
TT-MC2000 |
132 |
12—15 |
32-35 |
4900x2600x4300 |
