TV Refrigerator Bulky Waste Shredder Electronic Garbage Sorting System

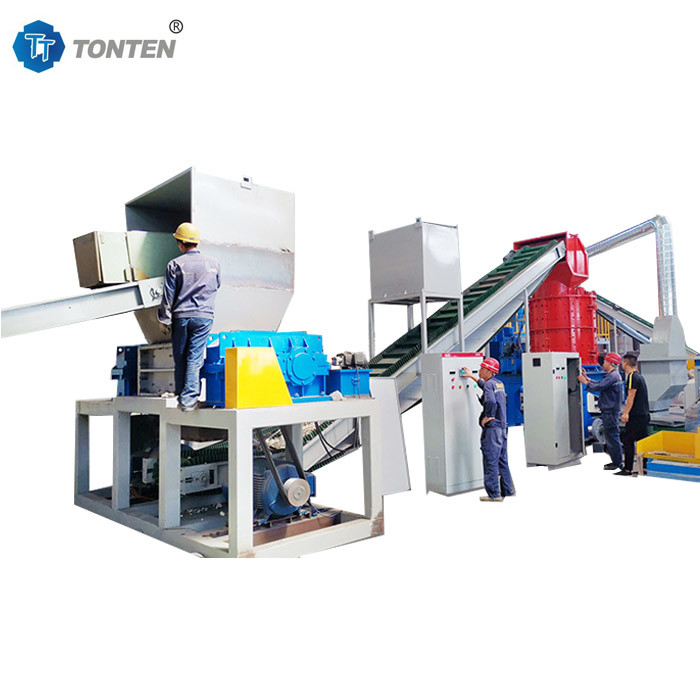

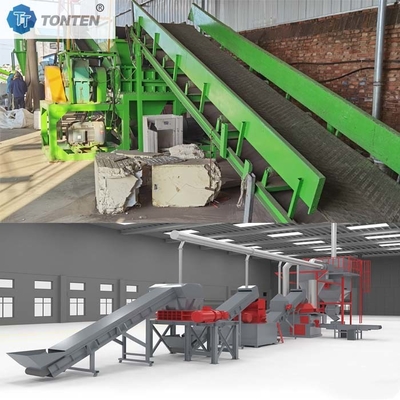

Home Appliances Waste Tv Refrigerator Sorting Recycling Crusher Line

Product introduce:

TONTEN machinery home appliances sorting recycling crusher line suitable for waste household appliances, refrigerators, freezers, washing machines, air conditioners, televisions, etc. The crusher line concentrates on the disintegration of the input material, but avoids an undoing and damaging of the individual components. It is therefore possible to quickly access disintegrated valuable waste material, without potential harmful substances emanating from individual parts.

Work process:
1. Double-shaft crusher pre-shreds the used refrigerators to facilitate subsequent hammer crushing and material separation. The equipment has the characteristics of large shearing force and good shredding effect.
2. TONTEN crusher uses high-speed impact and extrusion to separate rust, paint, foam and other impurities on the crushed metal surface through friction, and at the same time crushes plastic and foam.
3. Magnetic separator separates magnetic metals from other materials through magnetic force.
4. Eddy current sorting machine separates non-ferrous metals and plastics under the action of a magnetic field. It adopts an eccentric structure to improve the sorting efficiency; the adjustment is flexible and simple.
5. Through the air flow separator, copper and aluminum from non-ferrous metals are separated under the action of wind.
6. TONTEN supporting dust removal system is used to collect foam and dust generated during the production process of the production line.
7. Horizontal hydraulic baler packs the crushed and sorted materials to facilitate the next step of transportation and storage.

Home appliances sorting recycling crusher line application material:
Washing machine,Electrical/Electronic waste, refrigerator,household appliances, cooling units, LCD-monitors.Feed materials:TONTEN machinery home appliances sorting recycling crusher line designed for crushing separating and recycling copper,aluminum and iron of all kinds of refrigerators, freezers and other used scrap household appliances and electronic rotor.is suitable for home appliance recycling industry, garbage dumps, landfills, etc.

Advantage:
1.Safety production line are equipped with detection facilities and concentration, and graded alarm and safetycontrol are carried out.
2.Whole recovery process is a sealed negative pressure environment, whichreduces the emission of gas and pollutants.
3.Production line is equipped with a dust removal system, and thegas and particulate matter are collected and treated by the dust removal systemand discharged up to the standard.

Technical parameters:
