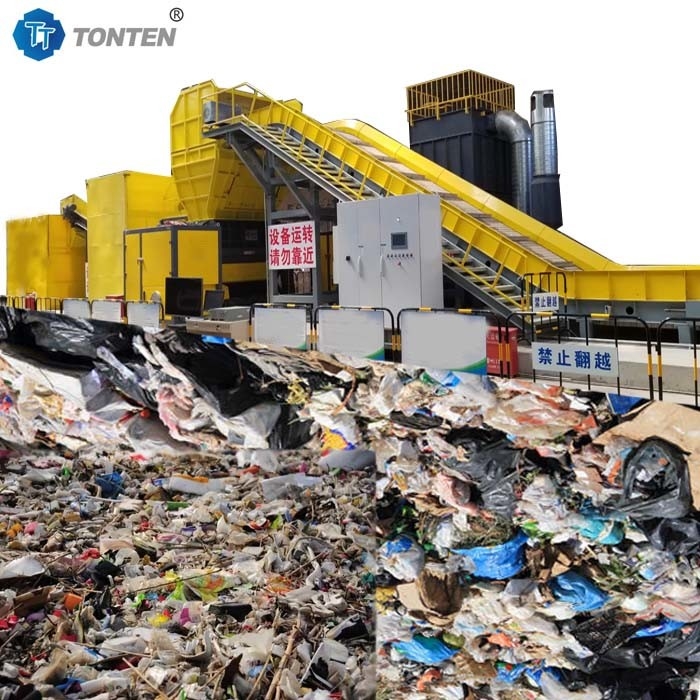

Municipal Domestic Waste Sorting Wet Waste Recycling Plant Kitchen Waste Crusher
Product Details:
Place of Origin: | China |
Brand Name: | TONTEN |
Model Number: | TT-DW1500 |
Payment & Shipping Terms:
Minimum Order Quantity: | 1 Set |
---|---|
Price: | Negotiable |
Packaging Details: | Export wooden packing or in container |
Delivery Time: | 10-15 work days |
Payment Terms: | T/T |
Supply Ability: | 20 Sets per month |
Detail Information |
|||
Rated Output: | 50t/day | Feeder: | 800x4000 |
---|---|---|---|
Trommel Screen: | 1500x6000 | Magnetic Separator: | TYD-6 |
Air Separator: | TX-65 | Number Of Conveyors: | B700x6 |
Floor Area: | 20mx50m | Total Power: | 82kw |
Product Description
Municipal Domestic Waste Sorting Wet Waste Recycling Plant Kitchen Waste Crusher
Product introduction:

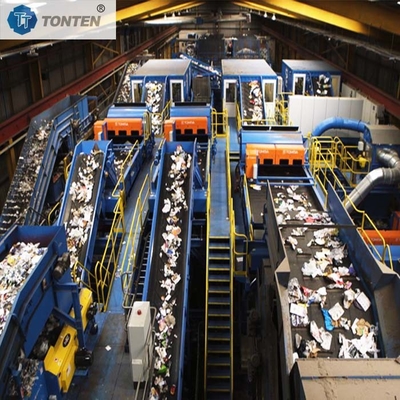

The domestic waste recycling plant integrates multiple equipment such as sorting, crushing, dust removal, and iron removal. First, the recyclables and non-recyclables in the garbage are effectively separated through sorting equipment. Subsequently, recyclable materials such as wood and metal are sent to the corresponding recycling system for reuse. The non-recyclable materials are crushed to further reduce their volume and facilitate subsequent processing. The domestic waste recycling plant not only achieves the reduction, harmlessness and resource utilization of waste, but also injects new vitality into the sustainable development of the city.
Work process:
1.Belt conveyor mainly responsible for conveying the collecteddomestic waste from the loading point (e.g. dustbinrubbish truck, etc.)to the sorting equipment orprocessing equipment.
2.Rotary vibrating screen uses the vibration motor togenerate the excitation force, so that the screenbody in the three-dimensional space to docompound rotary vibration, so that the material onthe screen surface to do spiral jumping movement,in order to achieve the purpose of screening andremovingimpurities.
3.Sieve Collection Conveyor mainly used to screen the materials screened bythe sorting line in a more detailed way, and canscreen the materials according to the size of theparticles, and separate the particles of differentsizes.lt is a kind of equipment that can preciselycontrol the flow rate and conveying direction ofmaterials.
4.Suspended Magnetic Separator is designed to attractthe ferrous materials in the waste flowing through itsmagnetic field area to the magnetic rods or magneticguide plates by generating a strong magnetic field.
5.The role of Feeding Conveyor When the domestic waste is fed into the inside of theequipment, the material forms a suspended state insidethe equipment through the action of wind power. Smallerdensity materials such as paper, plastic film, etc. will beblown to the side of the equipment by the wind, whiledenser materials such as glass, metal, etc. will fall to thebottom of the equipment
6.Heavy Material CollectionConveyor is to convey sorted heavy materials, such asmetal, ceramic chips, glass, etc., to the designatedcollection area in a stable and efficient manner.
7.Hydraulic baler are compressed andbaled to reduce the volume of materials and facilitatestorage and transport.
Domestic waste recycling plant specification:
Model
|
DW1500
|
DW1800
|
DW2000
|
DW2200
|
DW2500
|
Box feeder
|
B800×4000
|
B1000×4000
|
B1200×4000
|
B1400×4000
|
B1400×7000
|
Trommel screen
|
T1500x6000
|
T1800x6000
|
T2000x6000
|
T2200x8000
|
T2600x8000
|
Magnetic separator
|
TD-6
|
TD-8
|
TD-10
|
TD-10
|
TD-12
|
Air separator
|
TX-A65
|
TX-A80
|
TX-A100
|
TX-A120
|
TX-A150
|
Baller
|
T30
|
TX-B80
|
GX-B100
|
GX-B120
|
GX-B160
|
Number of conveyors
|
B650*6
|
B800*6
|
B1000*6
|
B1200*6
|
B1200*6
|
Total Power
|
84kw
|
102kw
|
135kw
|
160kw
|
180kw
|
