Yellow Rosewood Redwood Drying Equipment Industrial Stainless Steel
Product Details:
| Place of Origin: | China |
| Brand Name: | TONTEN |
| Model Number: | TT30-803 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden box |
| Delivery Time: | 5-7 work days |
| Payment Terms: | T/T |
| Supply Ability: | 20 units/month |
|
Detail Information |
|||
| Floor Space: | 20 (m2) | Weight: | 250(kg) |
|---|---|---|---|
| Applicable Material: | Multiple Availability | Mode Of Operation: | Batch Type |
| Application Field: | Food, Chemical And Pharmaceutical | Structural Form: | Multilayered Tape |
| Model Number: | Belt Dryer | Overall Dimension: | 10*5*2 (m) |
| Highlight: | Redwood drying equipment,Rosewood drying equipment,Stainless Steel industrial food drying machine |
||
Product Description

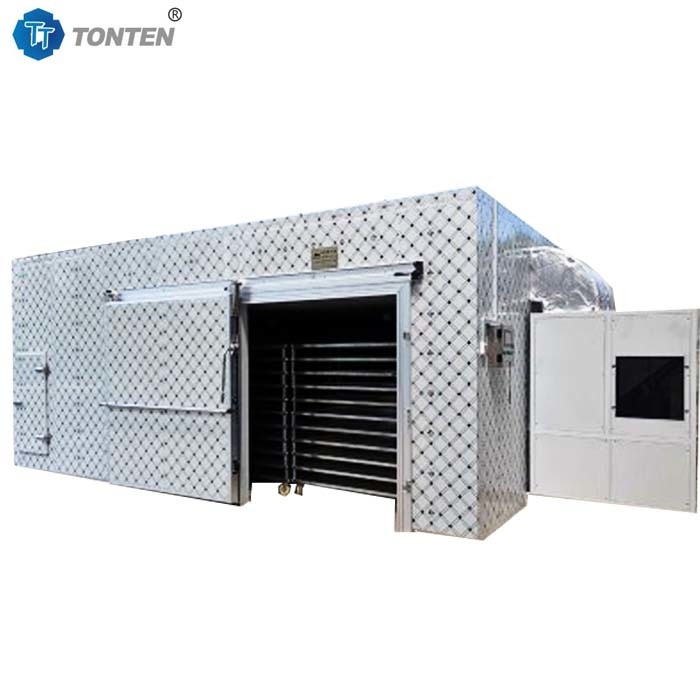

Dryer Room Machine Yellow Rosewood Redwood Dryer Stainless Steel Equipment
Dryer Room Machine Concept
With professional computer baking simulation software, accurate baking process parameters, in order to complete the scientific design of equipment configuration through computer simulation, such as equipment volume, hot air volume, wind speed, heat demand temperature and humidity associated changes, production, etc. In-depth research on drying equipment, make it towards multi-function, low energy consumption, automation.Drying room is a kind of drying equipment. The full English name is Drying equipment, which refers to a series of combinations of mechanical equipment used to dry moisture or other liquids on the surface of objects by certain technical means. The popular drying technology is mainly ultraviolet drying, infrared drying, electromagnetic drying and hot air drying. They have their own characteristics and are widely used in the drying of various mechanical equipment and food.
How Dryer Room Machine Works
Is the use of inverse Carnot principle, refrigerant (most of the mixed refrigerant) is compressed by the compressor, into high temperature and high pressure gas through the pipeline (copper pipe) into the heat exchanger (condenser), and then through the fan, the heat generated by the heat exchanger (condenser) is sent to the drying room to heat food and other materials, drying, so that the material is dry, moisture is discharged from the wet port.The moisture removal system has a heat recovery device, and the recovered heat is used to heat the fresh air, which can save 60%~70% of the fresh air preheating energy consumption.
Dryer Room Machine Details
1. Heat pump host:the host unit includes a Copeland compressor and a condenser, respectively with heating and dehumidification functions. During the dehumidification process, only the moisture in the material is discharged, and the hot air in the drying room is not discharged.
2.Air blower:Different models of dryers have different numbers of fans.
3.Polyurethane insulation board:The drying room adopts 10 cm polyurethane insulation board, which has good insulation effect and long service life.
4.tray:There are wooden pallets, plastic pallets, galvanized pallets, stainless steel pallets, can be customized.
Dryer Room Machine Parameter Table
| product | 7 pole open air supply | 15 PIP open air supply |
| Rated current (A) | 15.4 | 32.8 |
| Rated input power (KW) | 8.5 | 17.8 |
| Rated heat production (KW) | 22 | 43 |
| Maximum input current (A) | 29.3 | 61.8 |
| Maximum input power (KW) | 17.4 | 35.8 |
| Ambient temperature range (℃) | -10~43 | -10~43 |
| Drying temperature range (℃) | 30~75 | 30~75 |
| Moisture discharge (KG/H) | 25 | 52 |
| Power supply form (V/Ph/Hz) | 380/3/50 | 380/3/50 |
| Rated air volume (m3/h) | 7500 | 15000 |
| Electric heating power (KW) | 6 | 12 |
