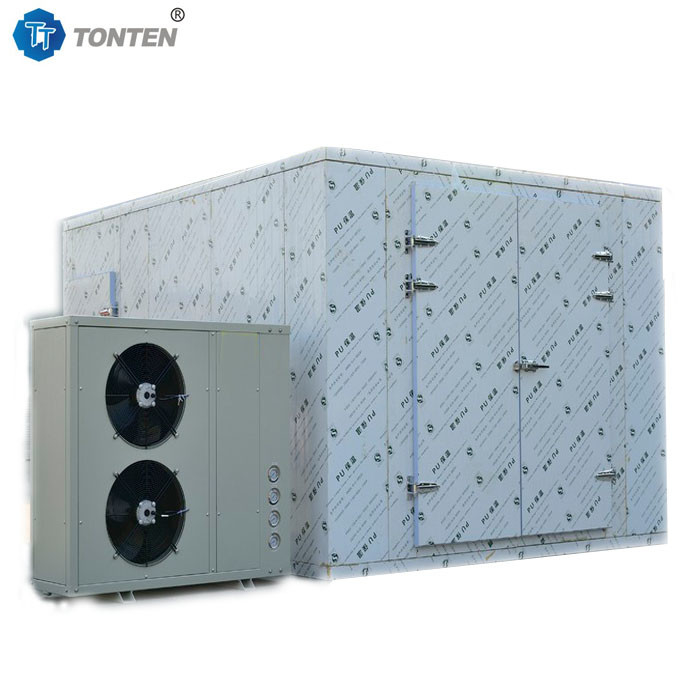

Processed Industrial Vegetable Drying Machine Equipment In Food Industry 380V
Product Details:
| Place of Origin: | China |
| Brand Name: | TONTEN |
| Model Number: | TT31-531 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden box |
| Delivery Time: | 5-7 work days |
| Payment Terms: | T/T |
| Supply Ability: | 20 units/month |
|
Detail Information |
|||
| Floor Space: | 15 (m2) | Supply Voltage: | 380V |
|---|---|---|---|
| Overall Dimension: | W12* D6 * H2 (m) | Rotational Speed: | 110 (r/min) |
| Weight: | 360KG | Processing Customization: | Yes |
| Model Number: | Air Dryer | Product Material: | Aluminum, Stainless Steel |
| Highlight: | 380V industrial vegetable drying machine,Processed Food industrial vegetable drying machine,Industrial drying equipment in food industry |
||
Product Description

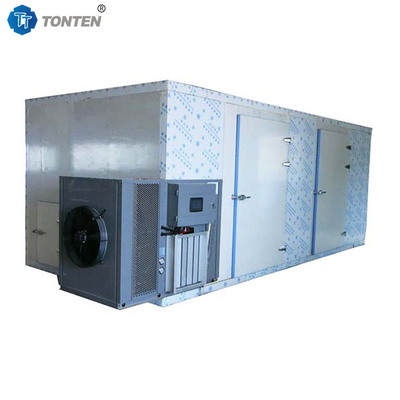

Dryer Room Machine Drying Room Processed Food Drying Equipment
Details of the Drying Room
The high temperature oven adopts rock wool sandwich board, the thickness is 50mm75mm100mm, and the surface is made of color steel plate, which is bonded by high strength adhesive after pressing by automatic continuous forming machine. Because the color steel plate and core material rock wool are non-burning bodies, it has good fire resistance and better insulation performance, and the high temperature can reach 180°C to 220°C or so. Favored by the majority of users. The heating methods of the high-temperature oven are divided into electric heating, oil heating, coal heating, wood heating, thermal oil heating and gas heating. The size, working temperature and heating method of the high-temperature oven can be customized according to the needs of customers.
Details of the Drying Room
The high temperature oven adopts rock wool sandwich board, the thickness is 50mm75mm100mm, and the surface is made of color steel plate, which is bonded by high strength adhesive after pressing by automatic continuous forming machine. Because the color steel plate and core material rock wool are non-burning bodies, it has good fire resistance and better insulation performance, and the high temperature can reach 180°C to 220°C or so. Favored by the majority of users. The heating methods of the high-temperature oven are divided into electric heating, oil heating, coal heating, wood heating, thermal oil heating and gas heating. The size, working temperature and heating method of the high-temperature oven can be customized according to the needs of customers.
Drying Room Principle
The operating principle of the drying room is mainly based on heating and air circulation. The specific heating is as follows. Drying rooms use heaters to generate heat, making the air hot, and usually, the heater will absorb the heat or electrical energy in the environment, convert it into thermal energy, and then transfer it to the air
Air circulation. The heated air circulates through the fan in the drying chamber, which helps to distribute the moisture in the material to the air, thus achieving drying.
Drying Room Parameter Table
| Product Model | 24C | 48C | 96C | 144C | 192C |
| Evaporation Area | 7.1 | 14.1 | 28.3 | 42.4 | 56.5 |
| Effective Volume | 1.3 | 2.6 | 4.9 | 7.4 | 10.3 |
| Drying Rate Per Session | 60 | 120 | 240 | 360 | 480 |
| Radiator Area | 15 | 24 | 48 | 72 | 96 |
| Steam Consumed | 15 | 20 | 40 | 60 | 80 |
| Fan Delivery | 3450 | 3450 | 6900 | 10350 | 13800 |
| Heating Power | 6-9KW | 15KW | 30KW | 45KW | 60KW |
| Fan Electric Power | 0.45KW | 0.45KW | 0.45*2KW | 0.45*3KW | 0.45*4KW |
| Tolerance Inside Oven | ±1℃ | ±2℃ | ±2℃ | ±2℃ | ±2℃ |
| Auxiliary Dryer | 1 | 2 | 4 | 6 | 8 |
| Baking Tyays To Be Provided | 24 | 48 | 96 | 144 | 192 |
| Temperature Control Box | yes | yes | yes | yes | yes |
| Machine Dimensions | 1380*1200*2000 | 2260*1200*2000 | 2260*2200*2000 | 2260*3200*2000 | 4280*2200*2270 |
| Machine Weight | 820 | 1580 | 1800 | 2100 | 2800 |
