Ternary NiMH Lithium Battery Crushing Machine Separation Recycling
Product Details:
| Place of Origin: | China |
| Brand Name: | TONTEN |
| Model Number: | TT-LR1560 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Export wooden packing or in container |
| Delivery Time: | 10-15 work days |
| Payment Terms: | T/T |
| Supply Ability: | 20 Sets per month |
|
Detail Information |
|||
| Final Material: | Mainly Copper, Aluminum, Lithium Cobalt Oxide, Graphite Powder | Manufacturability: | 800-1000kg/h |
|---|---|---|---|
| Power: | 70kw | Application: | Ternary Lithium,Battery NiMH Battery |
| Recovery Rate Of Metallic Aluminum: | ＞98% | Powder Recovery Rate: | ＞98% |
| Qualified Rate: | 99% | Size: | According To Customer Site And Output |
| Highlight: | Ternary battery crushing machine,NiMH battery crushing machine,NiMH lithium battery recycling machine |
||
Product Description
Ternary Lithium Battery Crushing Separation NiMH Battery Recycling Machine
Product introduction:

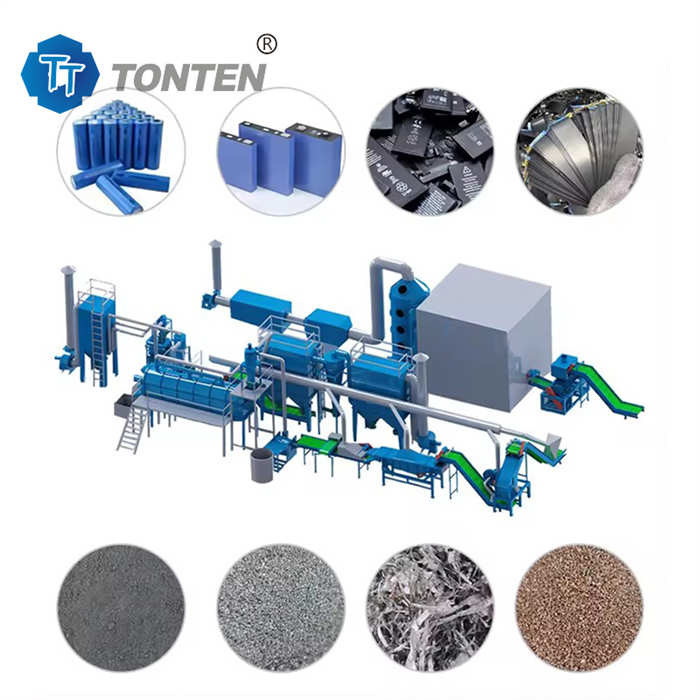

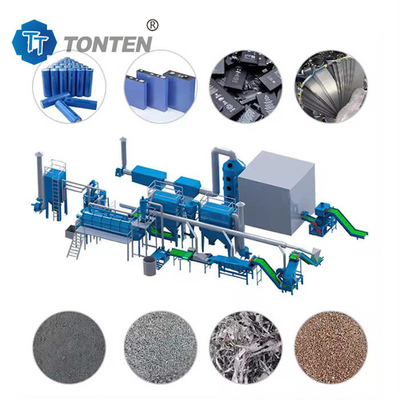

The recycling and crushing production line of ternary lithium battery and nickel-hydrogen battery is the key equipment for battery recycling and processing. The production line mainly includes conveyor, crusher, screening machine, magnetic separator and other components. The crusher is a device that breaks the new energy battery into small pieces, the screening machine is to screen the crushed battery and separate the materials of different particle sizes, and the magnetic separator is to separate the magnetic substances in the battery.
Working principle:
The waste lithium battery recycling and processing equipment is based on the material characteristics of the positive and negative structures of lithium batteries and their constituent materials copper and carbon powder. Through the combined process of hammer vibration crushing, vibration screening and airflow sorting, the resource utilization of metal copper and carbon powder in the negative materials of waste lithium batteries can be realized.
The negative material can effectively realize the mutual peeling between carbon powder and copper foil after hammer vibration crushing, and then the copper foil and carbon powder can be initially separated by vibration screening based on the size difference and shape difference between particles. The results of hammer vibration stripping and screening separation show that copper and carbon powder are enriched in the particle size range greater than 0.250 mm and less than 0.125 mm, respectively, and can be directly recycled.
For crushed particles with a particle size of 0.125~0.250 mm and a low copper grade, airflow sorting can be used to achieve effective separation between copper and carbon powder
The ternary lithium battery crushing and separation nickel-hydrogen battery recycling machine mainly adopts physical recovery methods, which has the characteristics of green, low carbon, and secondary pollution, and takes into account economy and benefits, realizing the utilization of valuable components and treating harmful components. The entire recycling process has achieved industrial automation, with high recycling efficiency and strong processing capacity.
Process:

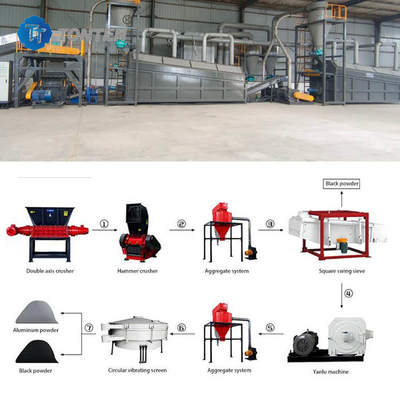

Conveyor-Shredder - Hammer Crusher -Grinder -Separation -Pulse Dust Collector -Classifying Screen-Magnetic-Gravity Separator-High-pressure Blower
Lithium battery recycling line specification:
|
Items |
LR-1250 |
LR-1560 |
LR-1800 |
|
Production capacity |
500-800Kg/h |
800-1000Kg/h |
1000-1500Kg/h |
|
Motor power |
78Kw |
115 Kw |
135 Kw |
|
Weight |
3.6 Ton |
5.7 Ton |
8.2 Ton |
|
Dimension (m) |
16x4.6x3.2 |
20x6.2x5 |
22x6x5.1 |
Customer site:
