Granule Nut Weighing Packaging Machine Sealer Packaging Scale
Product Details:
| Place of Origin: | China |
| Brand Name: | TONTEN |
| Model Number: | TT-P300 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Export wooden packing or in container |
| Delivery Time: | 7-10 work days |
| Payment Terms: | T/T |
| Supply Ability: | 30 Sets per month |
|
Detail Information |
|||
| Capacity: | 8-12bags/min | Weighing Range: | 5-50kg/bag Or Customized |
|---|---|---|---|
| Packaging Range: | Request Bag Size | Scale Interval: | 10kg |
| Weighing Hopper: | Single And Double | Air Source: | 0.5-0.8Mpa |
| Power: | 3.2kw | Type: | Weighing Packaging Machine |
Product Description

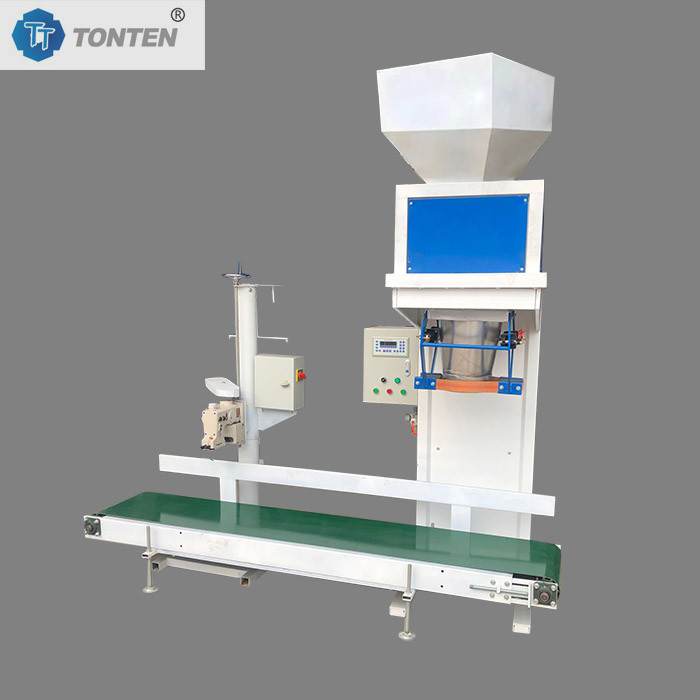

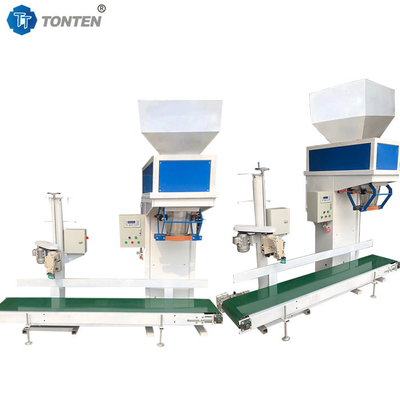

Granule Nut Weighing Packaging Machine Sealer Packaging Scale
Product Introduction:
The automatic weighing quantitative packaging machine weighs the items to be packaged through sensors, and then measures and packages the items through a control system, which can complete the packaging process quickly and efficiently. According to different item characteristics and packaging requirements, the automatic weighing quantitative packaging machine can be divided into different types such as single-bucket weighing machine, double-bucket weighing machine, and multi-head weighing machine.
Features:
1. Fully automated operation, simple operation, one machine for multiple people. Stable performance, easy adjustment, accurate detection.
2. All stainless steel structure, easy to clean and corrosion-resistant.
3. Automatic weighing and packaging machine unloading and electronic weighing technology, microcomputer control, with automatic quantitative, automatic filling, automatic error correction, weight over-tolerance alarm, counting, clearing and other functions.
4. Microcomputer control unloading, high precision.
5. Automatic weighing and quantitative packaging machine uses high-precision electronic feedback scale measurement, computer control.
6.The conveying bag sewing machine with wide quantitative range, high precision and adjustable table is a multi-purpose machine with high efficiency.
Weighing packaging machine parameter:
|
Items |
TT-P100 |
TT-P200 |
TT-P300 |
|
Application materials |
Candy, nuts, coffee, tea, flour, fertilizers, pesticides, adhesives, pigments, pigments, |
||
|
Weighing range |
10-50kg/bag or customized |
5-50kg/bag or customized |
5-50kg/bag or customized |
|
Request bag size width big than 40cm |
|||
|
Scale interval |
±10g |
||
|
Feeding type |
Belt feeder with variable frequency motor and material intercepting gate |
||
|
Weighing hopper |
non-weighing hopper |
single weighing hopper |
dual weighing hopper |
|
Precision |
±50-100g based on your materials characteristics |
||
|
Capacity |
3-4bag/min |
5-7bags/min |
8-12bags/min |
|
System |
PLC system and full touch screen HMI |
||
|
Air source |
0.5-0.8Mpa |
||
|
Dimension(L*W*Hmm) |
3000x1300x2200mm buffer hopper |
3000x1360x3200mm buffer hopper |
4000x1500x3820mm |
|
Power |
2.8kw |
2.9kw |
3.2kw |
|
Voltage |
single/three phase AC220V/AC380V/50HZ |
||
|
Working environment |
(-10℃~40℃) |
||
|
Relative humidity |
≤90%RH non condensation |
||
