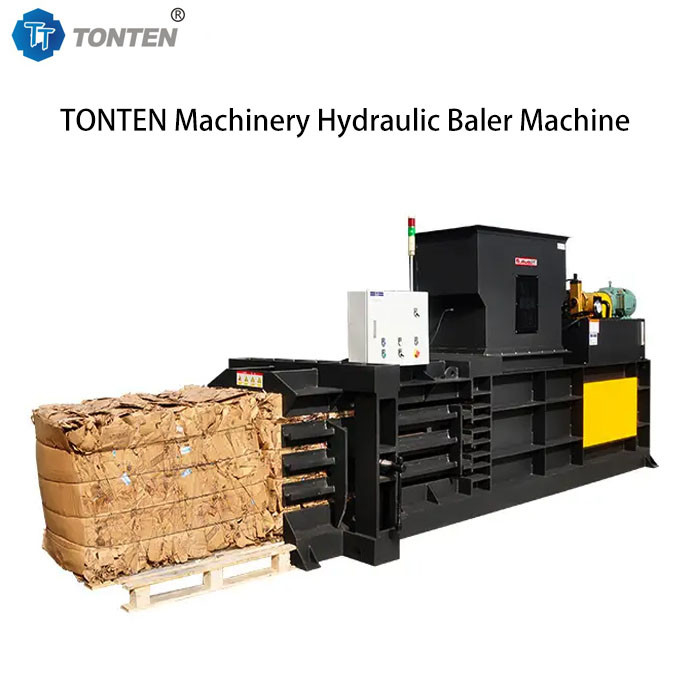

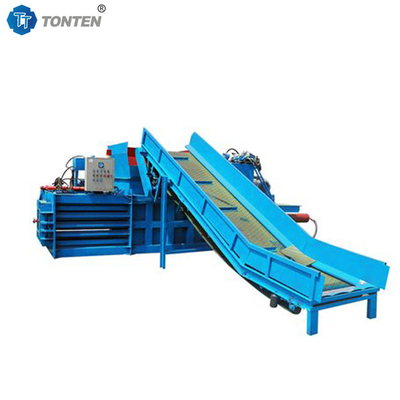

Horizontal Waste Carton Hydraulic Baler Machine Wood Chip Baler
Product Details:
| Place of Origin: | China |
| Brand Name: | TONTEN |
| Model Number: | TT-B800 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden box |
| Delivery Time: | 5-7 work days |
| Payment Terms: | T/T |
| Supply Ability: | 20 units/month |
|
Detail Information |
|||
| Pressure: | 80 Tons | Main Motor Power: | 22kw |
|---|---|---|---|
| Cooling System: | Air Cooler/water Cooler | Cycle Time: | 16s |
| Oil Reservior: | 1100L | Belting Number: | 4 Lines |
| Feed Opening Size: | 1600-2400mm | Name: | Horizontal Hydraulic Baler Machine |
Product Description
Horizontal Waste Carton Hydraulic Baler Machine Wood Chip Baler
Working principle:
The main hydraulic cylinder pushes the machine head to move forward and backward, the side cylinder pushes the machine head to move left and right, the cover cylinder drives the cover to open and close, and the block turning cylinder pushes the material turning mechanism to turn the material. The entire extrusion process is divided into three stages. The hydraulic system is an important driving mechanism of the press, which mainly enables the press to complete the extrusion, cover pressing, and material turning of the waste. It is mainly composed of hydraulic cylinders, oil cylinders, oil pumps, hydraulic motors and various valves.
,Put the packaging materials into the packaging machine material box, and compress the garbage materials into various packaging blocks through the hydraulic cylinder.
Features:
1. The automatic tensioning system ensures that all loose materials can be packed into "brick-like" bales.
Adjustable bale length and bale quantity accumulation function make the machine more convenient to operate
2. The automatic tensioning system ensures that all loose materials can be packed into "brick-like" bales.
Adjustable bale length and bale quantity accumulation function make the machine more convenient to operate
3. Unique double cutter design improves cutting efficiency and extends tool life.The unique anti-slip design of the machine makes the packaging more beautiful
Parameter:
|
Model |
TT-B600 |
TT-B800 |
TT-B800D |
|
Pressure |
60tons |
80tons |
80tons |
|
Main Motor Power |
22kw |
22kw |
22kw |
|
Cooling System |
air cooler/water cooler |
air cooler/water cooler |
air cooler/water cooler |
|
Cycle Time (Unload) |
24s |
16-20s |
28s |
|
Oil Reservior |
1000L |
1100L |
1100L |
|
Number of Belting |
4lines |
4lines |
4lines |
|
Wire Size |
2.7-3.2 |
2.7-3.2 |
2.7-3.2 |
|
Feed opening size (LxW) |
1600x1050mm |
1600x1050mm |
2450x1050mm |
|
Chamber Size(LxWxH) |
2100x1100x750mm |
2600x1100x750mm |
2900x1100x750mm |
|
Bale size(L can be adjustable) |
1100x500mm |
1100x800mm |
500x750mm |
|
Bale Density |
400-500kgs/m3 |
420-500kgs |
420-500kgs |
|
Thtoughput |
3-6tons/h |
4-8tons/h |
5-10tons/h |
|
Machine weight |
11tons |
13tons |
15tons |
|
Machine overall dimension |
7800x3650x3500mm |
8100x3930x3500mm |
9500x4200x3500mm |
|
Type |
Honrizontal Baler Type |
||
Customer site:
