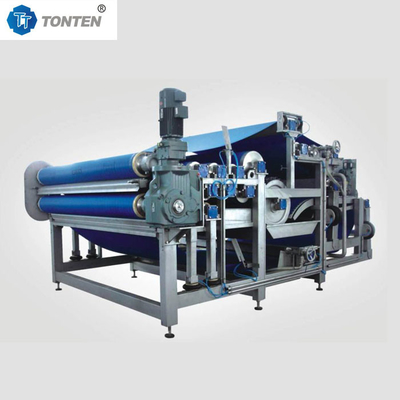

Belt Press Filter Machine Paper Mill Sludge Dewatering Treatment Equipment
Product Details:
| Place of Origin: | China |
| Brand Name: | TONTEN |
| Model Number: | TT-800 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Export wooden packing or load in container |
| Delivery Time: | 7-10work days |
| Payment Terms: | T/T |
| Supply Ability: | 30 Sets per month |
|
Detail Information |
|||
| Filtration Area: | 80㎡ | Chamber Qty: | 63 |
|---|---|---|---|
| Chamber Volume: | 1200L | Quantity Of Plate: | 64 Pcs |
| Plate Size: | 1000x1000mm | Length: | 5200 |
| Width: | 1500 | Item: | Belt Press Filter Machine |
Product Description

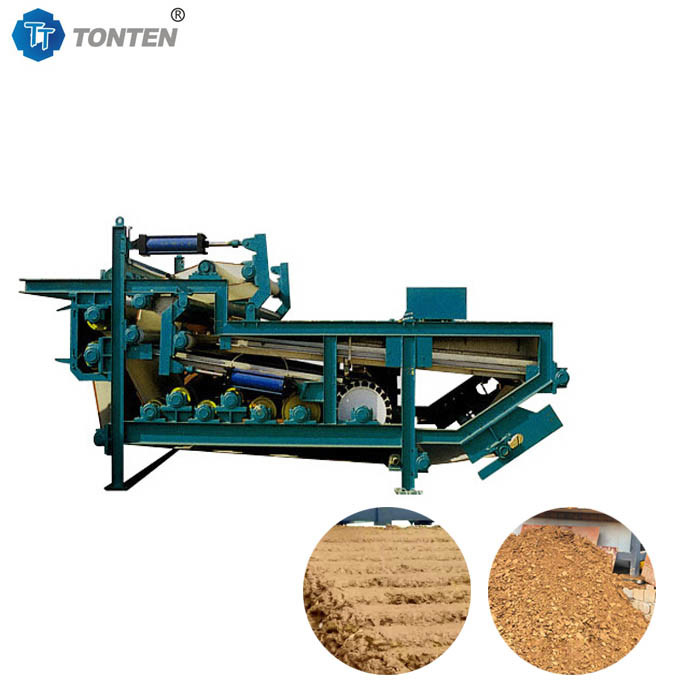

Belt Press Filter Machine Paper Mill Sludge Dewatering Treatment Equipment
Working principle:
The belt filter press equipment consists of two parts: a belt concentrator and a belt filter press. The mixed liquid containing solid matter enters the equipment through the feed port. After entering, the liquid mixture will be evenly distributed on a seamless filter cloth. The filter cloth will move slowly under the drive of the machine.During the flow on the filter cloth, the liquid will be filtered out through the filter cloth, while the solid particles will be left on the filter cloth. The solid particles on the filter cloth will pass through a series of pressure rollers to further squeeze and dehydrate to reduce the water content. In the cleaning section, the filter cloth will be cleaned and prepared for the next round of filtering operations.The dehydrated solids are continuously discharged from the discharge port of the equipment under the push of the belt.
Advantages:
1.Automatic adjustment tilting system greatly improves the service life of the filter belt.
2.The multi-roller gradually reduces the diameter, the structure is compact, and the solid content of the filter cake is increased.
3.Belt sludge dewatering filter press adopts a unique tilting and long wedge area design, and the performance is stable
4.The gravity dewatering area is large, the processing capacity is strong, the load capacity is strong, the energy consumption is low, and the cost performance is high.
5.High-quality filter screen is adopted, which has high strength, good water permeability, is not easy to be blocked, easy to clean, and easy to disassemble. Different filter screens are selected according to the different physical properties of the sludge.
6.Main machine is made of high-quality national standard square tubes, and the surface is rust-proofed, rust-proofed, and sprayed with four layers of fluorocarbon paint by high-pressure sandblasting, which is resistant to acid and alkali corrosion.
7.Extrusion roller, transmission roller, and guide roller are all made of high-quality seamless steel pipes with wear-resistant materials.
Belt press filter machine details:
Filtration Area(M2) | Chamber Qty | Chamber Volume(L) | Quantity of Plate(pcs) | Weight(Kg) | Dimension(mm) | ||
(pcs) | L | W | H | ||||
30 | 24 | 450 | 25 | 2380 | 3300 | 1500 | 1400 |
40 | 31 | 600 | 32 | 2725 | 3700 | ||
50 | 39 | 800 | 40 | 3118 | 4250 | ||
60 | 47 | 1000 | 48 | 3512 | 4760 | ||
80 | 63 | 1300 | 64 | 4261 | 5580 | ||
Belt filter press customer use site:
