Dryer Rapeseed Carrot Drying Machine Onion Belt Dryer Herb Root
Product Details:
| Place of Origin: | China |
| Brand Name: | TONTEN |
| Model Number: | TT-BD2080 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Export wooden packing or in container |
| Delivery Time: | 7-10 work days |
| Payment Terms: | T/T |
| Supply Ability: | 30 Sets per month |
|
Detail Information |
|||
| Thicknegs Of Materials: | 10-80mm | Power Equipment Inside: | 56kw |
|---|---|---|---|
| Power Equipment Outside: | 60kw | Unit Number: | 4x3 |
| Drying Section Length: | 24m | Temperature: | 50-120℃ |
| Drying Strength: | 280-750kgH₂O/h | Type: | Dryer Rapeseed Carrot Drying Machine |
Product Description

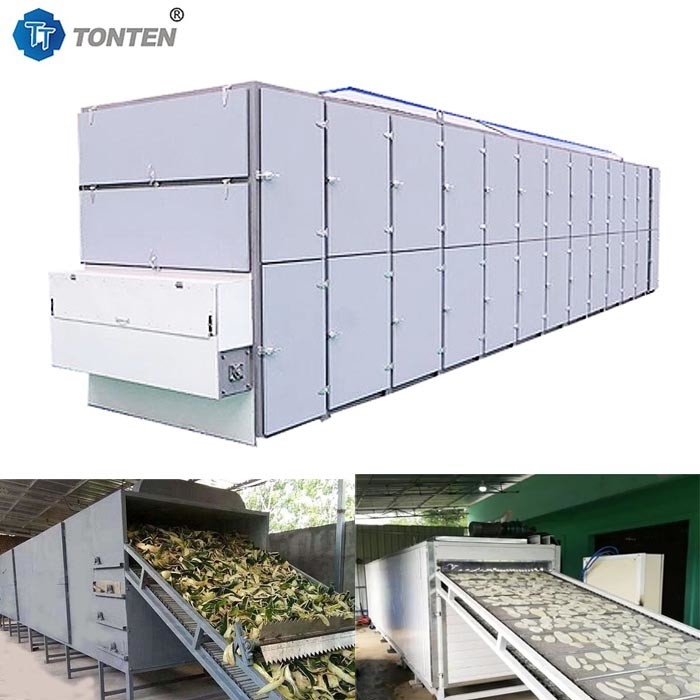

Dryer Rapeseed Carrot Drying Machine Onion Belt Dryer Herb Root
Advantages of mesh belt dryer:
1. A circulation channel is left on one side of the belt dryer frame, which is not only used for return air, but also as a maintenance channel for the mesh chain.
2. Each unit of hot air adopts high-efficiency cross-flow circulation heating, and the hot air flows from the bottom to the top of the material layer to fully contact the material, with high drying efficiency and more uniformity.
3. The TONTEN machinery belt dryer machine each unit consists of an independent hot air circulation system, dehumidification system, etc., belt dryer machine can be independently controlled, and the structure has higher drying efficiency and is more energy-saving.
Structure of mesh belt dryer:
1. Feeding part: including feed port, feed belt, etc., used to feed the materials to be dried into the drying room.
2. Drying part: composed of drying room, hot air circulation system, hot air generating device, etc. A mesh belt is provided in the drying room, and the materials are dried under the action of hot air through the mesh belt.
3. Discharging part: including discharging belt, discharging port, etc., used to transport the dried products out.
4. Control: including control devices for temperature, air volume, wind speed, etc., to realize automatic control of the drying process.
Belt dryer machine model:
|
Items |
TT-BD1280 |
TT-BD1210 |
TT-BD1680 |
TT-BD1610 |
TT-BD2080 |
|
Unit number |
4x3 |
5x3 |
4x3 |
5x3 |
4x3 |
|
Drying section length |
24m |
30 |
24 |
30 |
24 |
|
Thicknegs of materials |
10-80mm |
||||
|
Temperature |
50-160℃ |
||||
|
Drying strength |
150-450kgH₂O/h |
220-55kgH₂O/h |
240-600kgH₂O/h |
280-750kgH₂O/h |
280-750kgH₂O/h |
|
Power equipment inside |
30.8kw |
3704kw |
42kw |
51kw |
56kw |
|
Power equipment outside |
32kw |
41kw |
48.2kw
|
55.2kw |
58.7kw |
|
Overall dimensions |
8.5x2.2x4.5 |
10.8x2.2x4.6 |
9.87x2.6x4.5 |
11x2.6x4.7 |
9.75x3x4.9 |
|
Weight |
5100 |
5860 |
9500 |
9800 |
10110 |

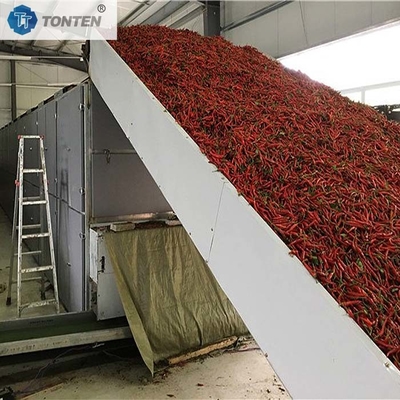

Customer on-site drying scene:
