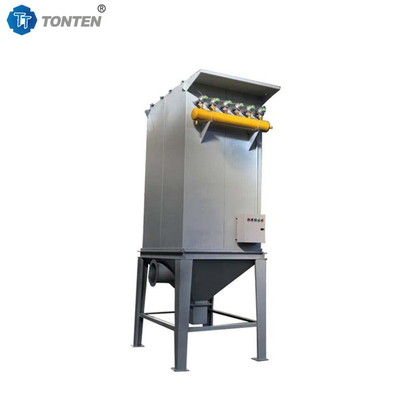

Air Cleaning Bag Dust Collector Air Filter Ash Removal Equipment
Product Details:
| Place of Origin: | China |
| Brand Name: | TONTEN |
| Model Number: | TT-F3625 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden Box |
| Delivery Time: | 5-7 work days |
| Payment Terms: | T/T |
| Supply Ability: | 20 units/month |
|
Detail Information |
|||
| Flow Rate: | 25920-45360m³/h | Filter Area: | 360㎡ |
|---|---|---|---|
| Filter Speed: | 1.2-2.1m/min | Cleaning Efficiency: | ≥98% |
| Emissions: | ≤30-50mg/m³ | Mainframe Power: | 30-52kw |
| Helix Conveyor Power: | 4kw | Item: | Air Cleaning Bag Dust Collector |
Product Description
Air Cleaning Bag Dust Collector Air Filter Ash Removal Equipment
Advantages:
1. Small resistance, large air volume, save compressed air consumption, and maintain good dust removal effect at high filtration speed.
2. The dust collector adopts high-quality filter bag design, good sealing effect, easy dust separation, large dust removal air volume, strong cleaning ability, and reduced secondary pollution.
3. The dust collector uses PLC or special program controller to control pulse cleaning. High degree of automation.
4. The dust collector can be cleaned offline. The purpose of dividing each filter unit is to separate one part of the filter unit. The other part is cleaned. Reduce the resistance of equipment operation.
Parameter:
|
Type |
Flow rate m3/h |
Filter area m2 |
Filter speed m/min |
Cleaning efficiency |
emissions mg/m3 |
(kw)Matching Motor |
|
|
Mainframe |
Helix convey machine |
||||||
|
TT-F60X2.5 |
4620~7560 |
60 |
1.2~2.1 |
98% |
≤30-50 |
5.5~7.5 |
|
|
TT-F80X2.5 |
5760~10080 |
80 |
1.2~2.1 |
98% |
≤30-50 |
11~15 |
|
|
TT-F100X2.5 |
7200~12600 |
100 |
1.2~2.1 |
98% |
≤30-50 |
15~18.5 |
|
|
TT-F120X2.5 |
8690~15120 |
120 |
1.2~2.1 |
98% |
≤30-50 |
15~18.5 |
2.2 |
|
TT-F160X2.5 |
11520~20160 |
160 |
1.2~2.1 |
98% |
≤30-50 |
18.5~22 |
3 |
|
TT-F180X2.5 |
12960~22380 |
180 |
1.2~2.1 |
98% |
≤30-50 |
18.5~22 |
3 |
|
TT-F200X2.5 |
14400~25200 |
200 |
1.2~2.1 |
98% |
≤30-50 |
22~30 |
3 |
|
TT-F260X2.5 |
18700~32860 |
260 |
1.2~2.1 |
98% |
≤30-50 |
22~37 |
4 |
|
TT-F280X2.5 |
20160~35280 |
280 |
1.2~2.1 |
98% |
≤30-50 |
22~37 |
4 |
|
TT-F300X2.5 |
21600~36800 |
300 |
1.2~2.1 |
98% |
≤30-50 |
30~37 |
4 |
|
TT-F320X2.5 |
23540~41320 |
320 |
1.2~2.1 |
98% |
≤30-50 |
30~45 |
4 |
|
TT-F360X2.5 |
25960~45360 |
360 |
1.2~2.1 |
98% |
≤30-50 |
30~55 |
4 |
