Pulse Bag Dust Collector Powder Removal Machine Air Bag Filter
Product Details:
| Place of Origin: | China |
| Brand Name: | TONTEN |
| Model Number: | TT-F80 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden Box |
| Delivery Time: | 5-7 work days |
| Payment Terms: | T/T |
| Supply Ability: | 20 units/month |
|
Detail Information |
|||
| Specification Of Filter Bag: | ∅120x2000/∅130x2500mm | Input Air: | 4500-6000m³/h |
|---|---|---|---|
| Filtering Wind Speed: | 1.25-1.67m/s | No. Of Filter Bag: | 80 Pcs |
| Air Consumption: | 0.08m³/h | Density Of Inlet: | 200g/m³ |
| Density Of Outlet: | 50mg/m³ | Type: | Pulse Bag Dust Collector Powder Removal Machine |
Product Description

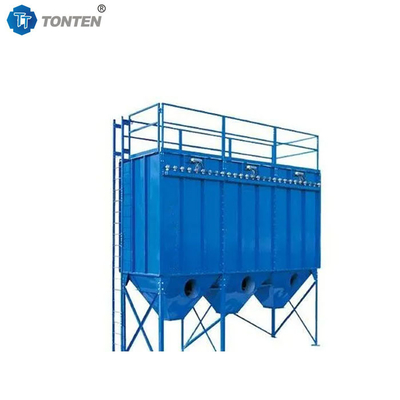

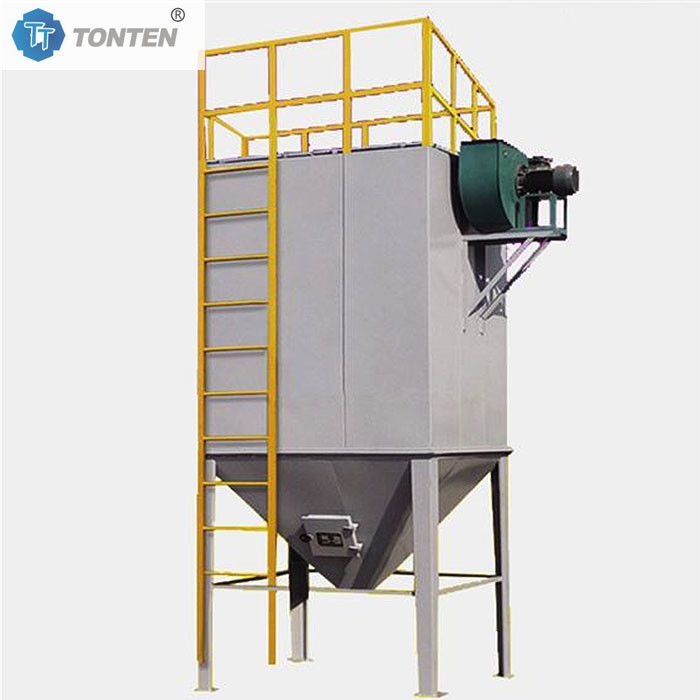

Pulse Bag Dust Collector Powder Removal Machine Air Bag Filter
Product introduction:
TONTEN machinery bag filter removal pulse dust removal equipment is an efficient and energy-saving industrial dust removal equipment. It adopts cartridge filtration and realizes automatic dust cleaning of the dust on the surface of the cartridge through regular pulse airflow backblowing, ensuring that the dust removal efficiency always remains at a high level. The belt pulse dust removal equipment is widely used in the treatment of dust and waste gas generated in various industrial production.Bag filter pulse dust removal collector equipment is safe, environmentally friendly and easy-to-use industrial dust removal solution.
Product description:
Pulse dust removal equipment consists of a feed bin, a dust collection bin, a cartridge assembly, a pulse control valve, a fan and other parts. The polluted gas enters the cartridge assembly through the feed bin, the dust is filtered by the cartridge, and the clean gas is discharged through the outlet. The dust accumulated on the surface of the cartridge will be regularly impacted by the high-pressure airflow released by the pulse control valve, thereby realizing automatic dust cleaning and ensuring the service life of the cartridge and dust removal efficiency.Automatic dust cleaning: regular pulse airflow backblowing to achieve automatic dust cleaning on the surface of the cartridge.Energy saving and environmental protection equipment.
Bag dust collector filter specification:
|
Items |
Total filter area (m2) |
Filtering wind speed (m/s) |
Input air (m³/h) |
Filter bag number (pc) |
Specification of filter bag (mm) |
Air consumption (m³/h) |
Density of inlet (g/m³) |
|
TT-F32 |
24-32 |
1.06-1.68 |
1500-2500 |
32 |
∅120x2000/∅130x2500 |
0.032 |
200 |
|
TT-F48 |
36-48 |
1.15-1.62 |
2600-3500 |
48 |
∅120x2000/∅130x2500 |
0.046 |
|
|
TT-F64 |
48-64 |
1.21-1.76 |
3500-5100 |
64 |
∅120x2000/∅130x2500 |
0.065 |
|
|
TT-F80 |
60-80 |
1.25-1.58 |
4500-6200 |
80 |
∅120x2000/∅130x2500 |
0.08 |
|
|
TT-F96 |
72-96 |
1.27-1.65 |
5500-7000 |
96 |
∅120x2000/∅130x2500 |
0.09 |
|
|
TT-F112 |
84-112 |
1.28-1.65 |
6500-8600 |
112 |
∅120x2000/∅130x2500 |
0.12 |
|
|
TT-F120 |
90-120 |
1.31-1.75 |
7500-9500 |
128 |
∅120x2000/∅130x2500 |
0.13 |
