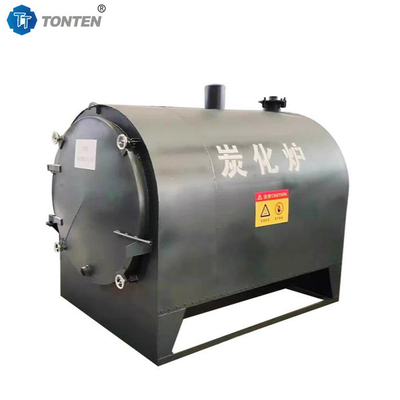

Miscellaneous Fruit Wood Carbonization Furnace Charcoal Production Equipment
Product Details:
| Place of Origin: | China |
| Brand Name: | TONTEN |
| Model Number: | TT-C1000 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Export wooden packing or container |
| Delivery Time: | 5-7 working days |
| Payment Terms: | T/T |
| Supply Ability: | 30 sets per month |
|
Detail Information |
|||
| Name: | Carbonization Furnace Charcoal Production Equipment | Capacity: | 4.76ton/7hour |
|---|---|---|---|
| Length: | 2.9m | Width: | 1.7m |
| Internal Diameter: | 2.7m | Internal Length: | 1.5m |
| Machine Material: | Carbon Steel | With Purifier: | Yes |
Product Description
Miscellaneous Fruit Wood Carbonization Furnace Charcoal Production Equipment
Equipment introduction:

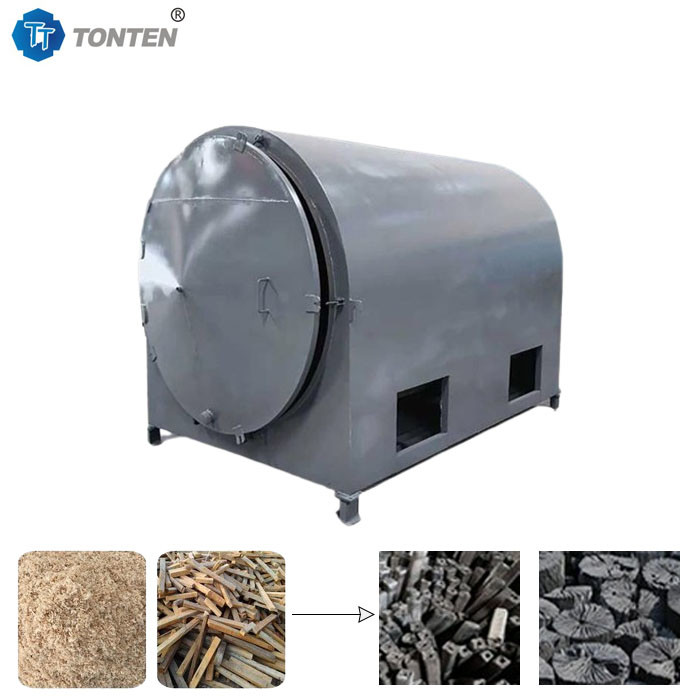

Horizontal carbonization furnace is a high-yield carbonization equipment that can efficiently produce charcoal, bamboo charcoal, sawdust charcoal, coconut shell charcoal and other products in one batch. Each batch only takes 6-8 hours to complete and the carbonization is sufficient. It adopts a horizontal structure, a cart to enter and exit the raw materials, advanced process technology, and a unique carbonization flue gas backburning technology. It fully utilizes the flue gas generated during the carbonization process to meet the heat energy requirements of the carbonization furnace itself, greatly improving the carbonization rate. The charcoal is easy to operate, safe and environmentally friendly, with high production efficiency, can save a lot of energy, and is an ideal equipment for carbonizing materials.
Working principle of carbonization furnace:
Carbonization process: feeding and sealing the furnace,preheating and drying of raw materials,anaerobic carbonization,cooling and charring, a total of four steps. The method of dry distillation carbonization and airflow carbonization is adopted to heat and decompose wood under oxygen-free or low-oxygen conditions. Thermal decomposition and gas combustion produce a large amount of heat, which increases the furnace temperature. The wood material is dry distilled into charcoal at high temperature, producing wood vinegar, wood tar and other components. In addition, the exhaust pipe of the horizontal airflow carbonization furnace can collect flue gas in time and deposit harmful substances. Three cubic meters of methane gas can be produced per kilogram of raw materials. These gases can be used to heat up the furnace. Exhaust can be used for drying heat source. Above 400 degrees is the heat preservation calcination stage. It needs to be sealed and oxygen-free. The fire can be taken from self-combustion cooling or water cooling.
Carbonization furnace parameters:
|
Types |
Capacity |
Length(m) |
Width(m) |
Internal Diameter(m) |
Internal Length(m) |
|
TT-C500 |
1.5ton/6h |
1.9 |
1.15 |
1.7 |
0.95 |
|
TT-C800 |
4.2ton/7h |
1.9 |
1.7 |
1.7 |
1.5 |
|
TT-C1000 |
4.8ton/7h |
2.9 |
1.7 |
2.7 |
1.5 |
|
TT-C1600 |
7.65ton/12h |
2.9 |
2.2 |
2.7 |
1.9 |
|
TT-C2000 |
10.6ton/15h |
3.5 |
2.3 |
3.7 |
1.9 |
Customer site:
