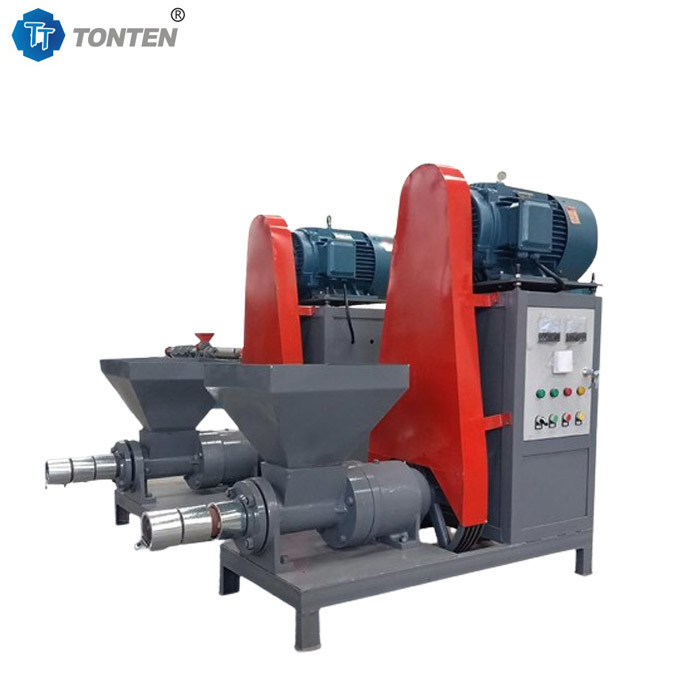

Wood Sawdust Charcoal Making Machine Charcoal Biomass Briquette
Product Details:
| Place of Origin: | China |
| Brand Name: | TONTEN |
| Model Number: | TT-M50B |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Export wooden packing or container |
| Delivery Time: | 5-8 work days |
| Payment Terms: | T/T |
| Supply Ability: | 30 sets per month |
|
Detail Information |
|||
| Capacity: | 300-320kg/h | Motor Power: | 18.5kw |
|---|---|---|---|
| Max.feeding Size: | 6mm | Humidity: | 6-12% |
| Forming Shape: | Rectangle ,hexagon,Six Prismatic | Calorific Value: | 6000-7500kcal/kg |
| Specific Gravity: | 1200-1300kg/m³ | Name: | Charcoal Making Machine |
Product Description
Wood Sawdust Charcoal Making Machine Charcoal Biomass Briquette
Charcoal machine introduction:
Charcoal machines are widely used in materials such as branches, sawdust, rice husks, bamboo chips, fruit shells, straw, logs, etc. The humidity of the raw materials should be less than 12%. Charcoal can be used in people's favorite barbecues, can be used for people's heating in winter, and can be used in steel plants to achieve the purpose of slow cooling. It has the advantages of simple operation, convenient use, low energy consumption, reliable performance, up to standard quality, easy installation, easy operation, economical and practical.
Production process of charcoal making machine:
First, check whether the material is less than 1cm. If it is larger than the requirement, a pulverizer needs to be used to crush the material into suitable particles; second, check whether the moisture of the crushed material is greater than 12%. If it is greater, a dryer needs to be used to dry the material; then the crushed and dried material is processed by a rod making charcoal making machine machine at high temperature and high pressure to be pressed into semi-finished firewood sticks, and then the semi-finished firewood sticks are placed in the carbonization furnace equipment. After smokeless, environmentally friendly high-temperature carbonization, high-quality charcoal can be produced.Complete set of charcoal making equipment includes briquette making machine, carbonization furnace, dryer and other equipment.
Charcoal making machine parameter:
|
Items |
TT-M50A |
TT-M50B |
TT-M50C |
|
Motor Power |
15 KW |
18.5KW |
21KW |
|
Max.feeding size (mm) |
6 |
6 |
6 |
|
Humidity % |
6-12 |
6-12 |
6-12 |
|
Forming shape |
Rectangle ,hexagon,Six prismatic |
||
|
Calorific value ( kcal/kg) |
6000-7500kcal/kg |
||
|
Specific gravity( kg/m³) |
1200-1300kg/m³ |
||
|
Output(kg/h ) |
260-300kg/h |
300-320kg/h |
320-340kg/h |
Carbon making machine workshop:
Our Services:
1. Inquiry and consulting support.
2. Sample free testing support.
3. Welcome view and visit TONTEN machinery limited.
4. Instance guidance is available on the phone or email any time.
5. we will send technician to the mine site to guide the installation, trial run test, and training operators until the plant works normally.
6. Training how to instal the machine, training how to use the machine.
7. Engineers available to service machinery overseas.
8. Charcoal making equipment warranty is 24 months, Equipment spares will be offered with manufacturing cost in at least 10 years since the order is placed.
9. Our factory support logo, color and other customization according to your needs.
