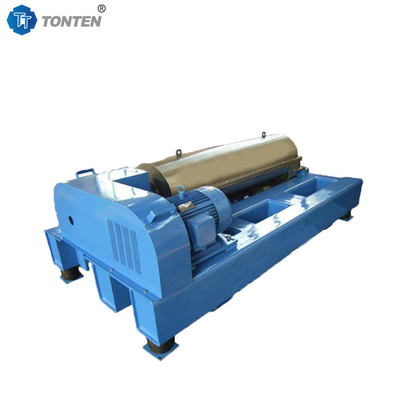

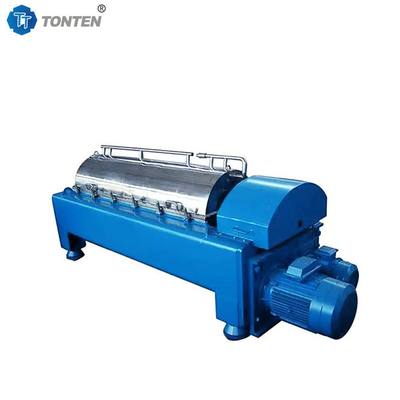

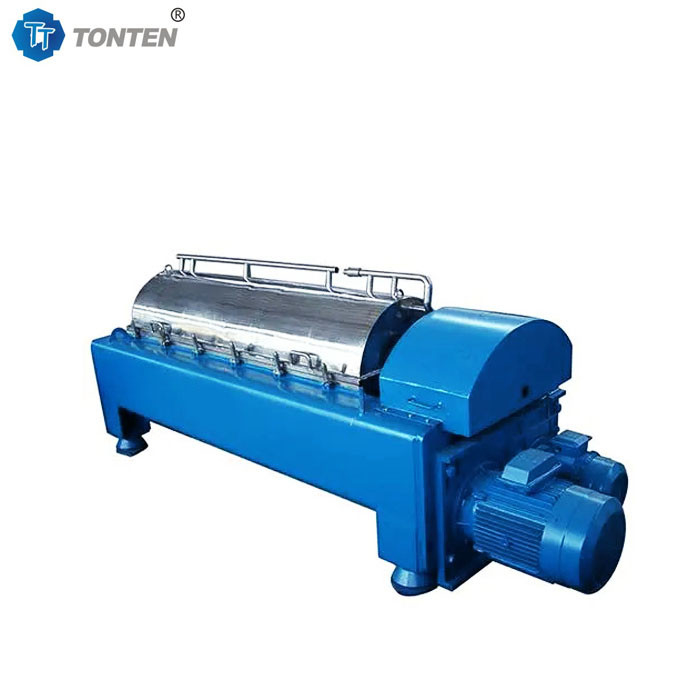

Horizontal Screw Sludge Decanter Centrifuge Machine For Wastewater Dewatering
Product Details:
| Place of Origin: | China |
| Brand Name: | TONTEN |
| Model Number: | TT-SD630 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Export wooden packing or in container |
| Delivery Time: | 5-7 working days |
| Payment Terms: | T/T |
| Supply Ability: | 50 Sets per month |
|
Detail Information |
|||
| Diameter: | 630mm | Capacity: | 30-50m³/h |
|---|---|---|---|
| Back Motor: | 18.5-22kw | Main Motor: | 90-110kw |
| Ratio: | 4.1 | Speed: | 3100rpm |
| G Force: | 3390 | Item: | Sludge Dewatering Centrifuge Machine |
| Highlight: | Horizontal sludge decanter centrifuge,sludge decanter centrifuge Machine,Horizontal wastewater centrifuge dewatering |
||
Product Description
Horizontal Screw Sludge Dewatering Centrifuge Machine For Waste Water
Product Introduction:
The horizontal spiral centrifugal desludging machine is a horizontal centrifuge with continuous feeding and continuous discharging. The sedimentation rate is determined by the particle size, particle shape, solid-liquid density difference and viscosity of the material. The main machine of the horizontal spiral unloading sedimentation centrifuge consists of a conical drum, a spiral feeder, a differential, a bearing seat, a base, a cover, a main motor, an auxiliary motor, and an electric control room. The drum rotates at high speed, forming a strong centrifugal force, which allows the sludge to be dehydrated 24 hours a day.
Working principle:
Under the action of centrifugal force, the suspension in the drum is quickly separated into two phases, and the heavier solid phase is deposited on the inner wall of the drum. Driven by the differential gear, the screw feeder and the drum move asynchronously. The separated liquid is discharged from the large end or pumped out by a centripetal pump.
Specification:
|
Items |
Dia mm |
Ratio |
Speed rpm |
G force |
Main Motor |
Back Motor |
Capacity m3/h |
Weight kg |
Size (L×W×H)mm |
|
TT-SD250 |
250 |
4.1 |
5000 |
3500 |
7.5~11kw |
3~4kw |
1~3 |
1150 |
2300×850×1100 |
|
TT-SD350 |
350 |
4.1 |
4000 |
3136 |
15~21kw |
4~5.5kw |
3~6 |
2500 |
3400×900×1400 |
|
TT-SD450 |
450 |
4.1 |
3800 |
3640 |
30~35kw |
7.5~10.8kw |
6~10 |
4000 |
4500×1000×1400 |
|
TT-SD500 |
500 |
4.1 |
3500 |
3430 |
45~52kw |
7.5~11kw |
8~12 |
5000 |
4900×1200×1470 |
|
TT-SD530 |
530 |
4.1 |
3300 |
3232 |
55~75kw |
11~18.5kw |
10~15 |
5600 |
5100×1250×1500 |
|
TT-SD600 |
600 |
4.1 |
3000 |
2948 |
75~90kw |
15~20kw |
15~20 |
6500 |
5300×1300×1750 |
|
TT-SD630 |
630 |
4.1 |
3100 |
3390 |
90~110kw |
18.5~22kw |
30~45 |
7800 |
5100×1560×1800 |
|
TT-SD720 |
720 |
4.1 |
2200 |
1951 |
110~130kw |
22~30kw |
70~120 |
9000 |
6000×2250×1900 |
Centrifugal desludging equipment customer site:
