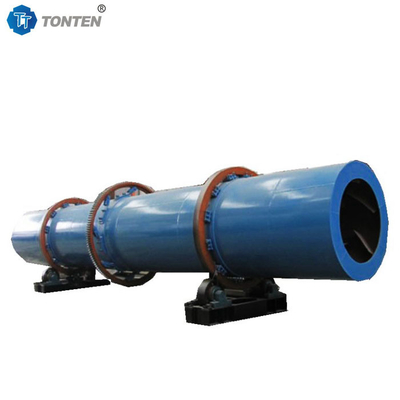

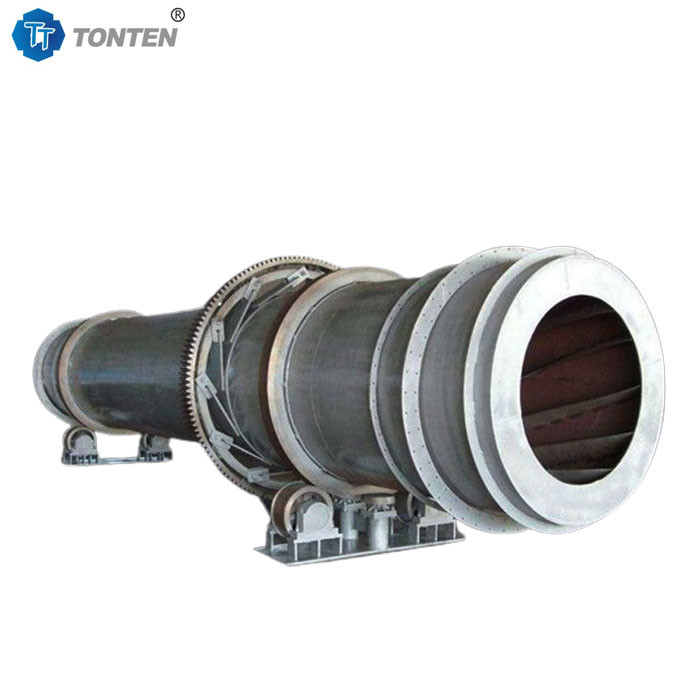

90kw Sludge Fertilizer Dryer Machine Drum Rotary Roller Drying
Product Details:
| Place of Origin: | China |
| Brand Name: | TONTEN |
| Model Number: | TT-RD3.2x2.5 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Export wooden packing or in container |
| Delivery Time: | 7-15 work days |
| Payment Terms: | T/T |
| Supply Ability: | 30 Sets per month |
|
Detail Information |
|||
| Capacity: | 75-90ton/hour | Main Motor: | 90kw |
|---|---|---|---|
| Speed Ratio: | 22.4 | Weight: | 156ton |
| Reducer Model: | ZSY315-22-ll | Motor Model: | Y315M-6 |
| Application: | Sludge Fertilizer | Type: | Dryer Machine Drum Roller Dryer Drying |
| Highlight: | Rotary Fertilizer Dryer Machine,90kw Fertilizer Dryer Machine,Sludge rotary drying machine |
||
Product Description
Rotary Sludge Fertilizer Dryer Machine Drum Roller Dryer Drying
Working principle:
The drum dryer is mainly composed of heating system, drum,transmission device and dust removal device. The material is placed in the drum, and then the motor drives the drum to rotate, and the material rolls in the drum. At the same time, hot air blows in from the outside of the drum to blow away the moisture in the material, thereby achieving the purpose of drying. The material is placed in the drum, and the drum is heated by the heating device to gradually evaporate the moisture in the material. At the same time, the transmission device drives the drum to rotate, so that the material rolls continuously in the drum, so that the moisture evaporates faster.
Features:
1. The drum dryer also has a variety of drying modes and temperature control, and users can choose different modes and temperatures according to their needs.
2. The application of drum dryers is very wide, and can be used to dry various materials to meet the needs of different industries. It can be used to dry various materials such as coal, ore, fly ash, wood, pulp, cellulose, textiles, food, medicine, etc.
Technical parameters of drum roller dryer:
|
Model |
Capacity(t/h) |
Main motor |
Main reducer |
||
|
Power(kw) |
Model |
Model |
Speed ratio |
||
|
TT-RD1.2×10 |
6-8 |
7.5 |
T160M-6 |
ZTQ-16-1 |
31.5 |
|
TT-RD1.5×12 |
8-12 |
15 |
T180L-6 |
TQU500-2C |
31.5 |
|
TT-RD1.5×15 |
12-16 |
18.5 |
T200L-6 |
JZU500-2A |
31.5 |
|
TT-RD1.8×12 |
18-20 |
18.5 |
T200L-6 |
TZQ-1l-2 |
31.5 |
|
TT-RD2.2×12 |
22-28 |
22 |
T160L-6 |
JQT600-IlI |
31.5 |
|
TT-RD2.2×14 |
26-30 |
22 |
T160L-6 |
JQT680-IlI |
31.5 |
|
TT-RD2.4×14 |
30-35 |
30 |
T250M-6 |
JQT700-III |
31.5 |
|
TT-RD3x20 |
45-55 |
55 |
T250M-5 |
ZQT100-16-1 |
41.52 |
|
TT-RD3×25 |
58-70 |
75 |
TR280M-4 |
ZQT260-16-1 |
37.5 |
|
TT-RD3.2×25 |
75-90 |
90 |
T315M-6 |
TST300-22-ll |
22.5 |
Rotary dryer machine drum roller drying:
