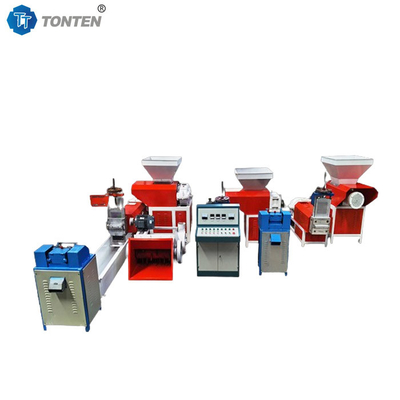

Eps Foam Recycling Pelletizing Machine PE Foam Granulator Plastic
Product Details:
| Place of Origin: | China |
| Brand Name: | TONTEN |
| Model Number: | TT-ZL325 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | export packing, container or as required |
| Delivery Time: | 5-7 working days |
| Payment Terms: | T/T |
| Supply Ability: | 50 Sets per month |
|
Detail Information |
|||
| Name: | PE Foam Granulator | Capacity: | 300-400kg/h |
|---|---|---|---|
| Motor: | 18.5kw | Weight: | 2510kg |
| Size: | 1800x1600x1850mm | Use Material: | Eps Foam PE Foam |
| Type: | Foam Recycling Pelletizing Machine | Item: | Pelletizing Granulator |
Product Description
Eps Foam Recycling Pelletizing Machine PE Foam Granulator Plastic
Application range:
Foam granulators are widely used in conventional polyolefin soft plastics such as: plastic woven bags including cement bags, snake skin bags, fertilizer bags, grain bags, industrial packaging bags, ton bags, space bags; and plastic film materials including agricultural films, ground films, greenhouse films, industrial packaging films; PE handbags, vest bags, and agricultural drip irrigation tapes can also be recycled and granulated.
Foam recycling peeletizing granulator machine advantages:
1. Multi-stage automatic partition control ensures the plasticization quality of the particles on the basis of ensuring the progressive plasticization of the material;
2. The raw materials inevitably contain abrasive impurities such as mud and sand. Therefore, the barrel screw of the granulator has a major breakthrough in design technology. In addition to having good dehydration and exhaust performance, it also has super wear resistance, which minimizes the secondary wear of the screw and prevents breakage; the configuration of two-stage speed regulation and electric screen change is greatly adapted to the processing of soft materials of different varieties and properties, and saves time and effort.

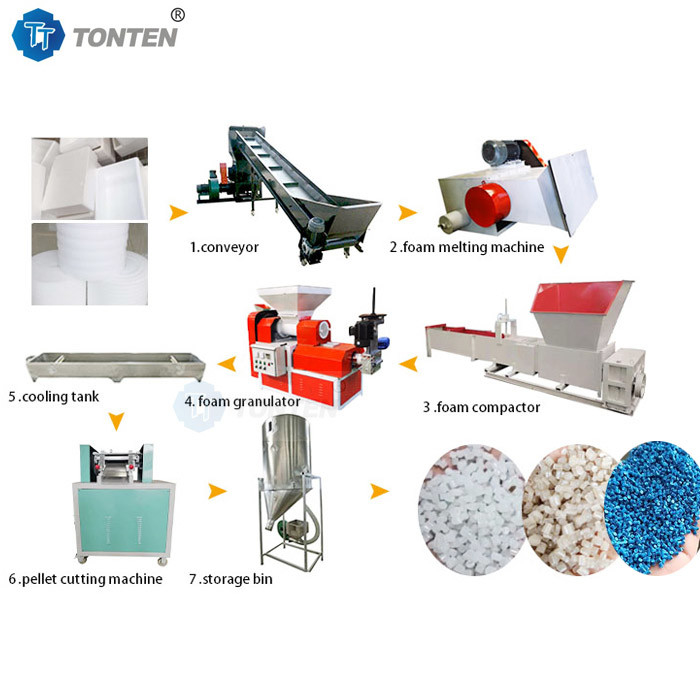

3. From raw material crushing, cleaning, feeding to granulation, all are automated; all recycled materials can be produced without drying, drying or sun drying after classification, crushing and cleaning, and can be used for both wet and dry purposes;
4. Considering the characteristics of soft plastic processing, in order to increase production capacity, the main model of the granulator can be designed to be more than 250mm, and there are a variety of models to choose from, fully meeting the needs of users of different scales and starting points.
5. Users with higher requirements can also upgrade to a more automated production line such as double filtration, automatic feeder or forced feeder.
6. The extrusion molding part consists of a die sleeve seat and a die sleeve. The position of the die sleeve can be adjusted by bolts through the support to adjust the relative position of the die sleeve to the die core, so as to facilitate the adjustment of the uniformity of the thickness of the extruded layer. A heating device and a temperature measuring device are installed on the outside of the head.
Specification:
|
Model |
Capacity |
Voltage |
Motor power |
Weight |
Dimension |
|
TT-ZL245 |
250-300 kgs/H |
380V |
15 kw |
1200 kgs |
1200x1350x1500 mm |
|
TT-ZL320 |
300-400 kgs/h |
380V |
18.5KW |
2400 kgs |
1550x1600x1800 mm |
|
TT-ZL350 |
400-500 kgs/h |
380V |
22KW |
2700 kgs |
1600x1750x1920 mm |
