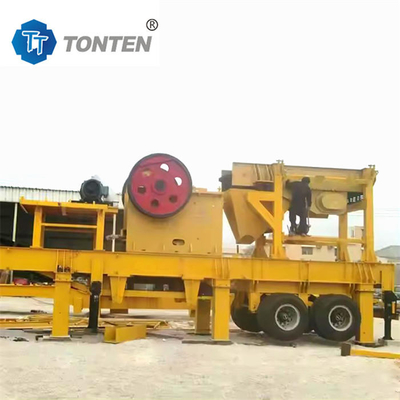

Mobile Construction Waste Crusher Station Plant Rock Gravel Crushing
Product Details:
| Place of Origin: | China |
| Brand Name: | TONTEN |
| Model Number: | TT-CP1060 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Export wooden packing or in container |
| Delivery Time: | 10-15 work days |
| Payment Terms: | T/T |
| Supply Ability: | 20 Sets per month |
|
Detail Information |
|||
| Capacity: | 50-300 T/h | Feed Size: | ≤800 Mm |
|---|---|---|---|
| Discharge Size: | 5-40MM Customized | Drive Mode: | Electric Or Diesel Engine |
| Applicable Materials: | Construction Waste Rock Gravel | Production Line Composition: | Cleaning, Crushing, Screening, Etc. |
| Movement Method: | Crawler Tire | Crushing Chamber Type: | Coarse Crushing, Medium Crushing, Fine Crushing |
| Highlight: | Mobile Construction Waste Crusher Station,Mobile Construction Waste Crusher Station Plant,Rock Gravel Construction Waste Crusher Station |
||
Product Description
Mobile Construction Waste Crusher Station Plant Rock Gravel Crushing
Mobile construction waste crushing station:
1. Feeding system: Mobile loaders or conveyor belts can be used to feed construction waste (such as concrete, bricks, rocks, gravel, pebbles, shale and other construction waste) into the crushing station.
2. Crushing system: Equipped with mobile jaw crusher, cone crusher or impact crusher or other crushing equipment according to the material, it can initially crush large pieces of construction waste into small particles, reduce the particle size for secondary crushing, further refine the material and improve the particle shape.
3. Screening system: Mobile vibrating screen can classify the crushed materials according to the particle size and divide them into aggregates of different specifications (such as 0-5 mm, 5-10 mm, 10-20 mm, etc.). The specific screening particle size is customized according to customer requirements
4. Cleaning system: Mobile sand washing machine, cleans the screened aggregates, removes impurities and dust, and improves the quality of aggregates.
5. Sorting system: Magnetic separator (if necessary), used to remove metal impurities and ensure the purity of aggregates.
6. Conveying system: Mobile conveyor belt, transports the cleaned aggregate to the storage area or directly to the downstream process.
7. Control system: Intelligent control system, real-time monitoring of the working status of each link, automatic adjustment of equipment operating parameters, and improvement of production efficiency.
Advantages:
High quality of finished products: Aggregates crushed and screened by mobile construction waste crushing station have excellent particle shape and are suitable for recycled aggregates and building materials.
High degree of automation: Equipped with intelligent control system, real-time monitoring of equipment operation status, improved operation convenience, and can be moved and adjusted at any time according to the needs of the construction site. .
Reduced transportation costs: Processing construction waste on site reduces the cost of transportation to fixed crushing plants.
High efficiency: Integrated crushing, screening, cleaning and other functions improve production efficiency, and different models of crushers can be configured according to needs to adapt to a variety of materials.
Support customization: Equipment configuration and functions can be customized according to customer needs to meet the requirements of different construction sites.
Specification:
|
Model |
Dimension(mm) |
Blades(mm) |
Motor(kw) |
Weight(kg) |
|
TT-CP1060 |
2800×1300×1570 |
200 |
32 |
3600 |
|
TT-CP1080 |
3100×1600×1850 |
200 |
45 |
5100 |
|
TT-CP1520 |
3300×1900×2200 |
300 |
70 |
7000 |
|
TT-CP1810 |
3600×2000×2200 |
300 |
110 |
8600 |
|
TT-CP2030 |
4180×2100×2400 |
550 |
132 |
12500 |

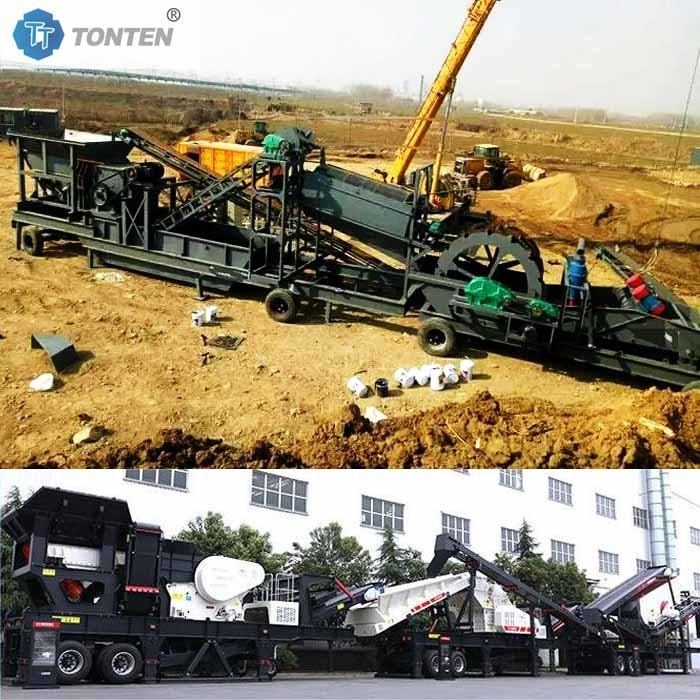

Customer site:
