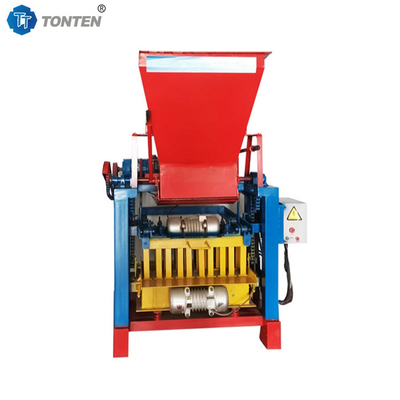

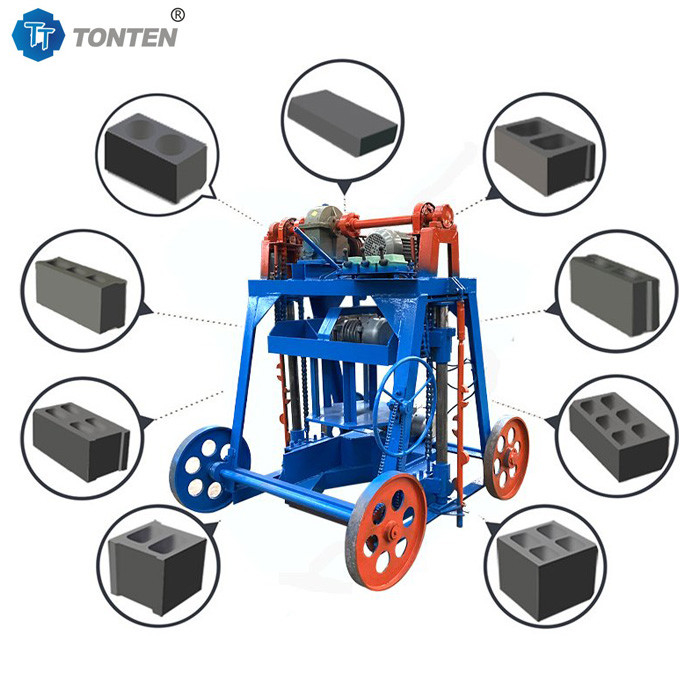

Fly Ash Block Brick Making Machine Concrete Brick Machine Supplier In China

Fly Ash Block Brick Making Machine Concrete Brick Machine Supplier In China

Product Details:

Place of Origin: China
Brand Name: TONTEN
Model Number: DT4-15A

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: standard international export packing, container or as required
Delivery Time: 7-10work days
Payment Terms: T/T
Supply Ability: 80 sets per month
Get Best Price Contact Now

Detail Information

Power: 8.5KW Cycle Time: 15-25 Seconds
Mold Size: 880×570MM Dimensions: 1250x970x1100mm
Blocks/day: 35000-40000 Rated Pressure: 21Mpa
Raw Materials: Fly Ash,Concrete,crushed Stone, Sand, Cement Main Type: Block Brick Making Machine

Product Description

Fly Ash Block Brick Making Machine Concrete Brick Machine Supplier In China



Introduction of fly ash concrete brick making machine:
The brick making machine is designed to use fly ash, an industrial waste, as the main raw material to reduce environmental pollution and achieve efficient use of resources. Fly ash is a fine powdery substance discharged by coal-fired power plants. It has good cementation and adhesion. It can react with cement and other binding materials to form cement stone with a certain strength, so it is widely used in building materials.By rationally utilizing resources, the fly ash block brick making machine contributes to the construction of a sustainable society. With the continuous innovation of technology and the expansion of the market, it is expected that more companies will invest in the production of fly ash bricks in the future, thereby promoting the overall progress of the building materials industry.



Working principle:
The working principle of TONTEN Machinery brick making machine is to mix fly ash, gravel, cement, sand and water in a certain proportion, and after stirring, form a uniform mixture. Subsequently, these mixtures are fed into the molding equipment and formed into brick blanks after high pressure molding. The formed brick blanks need to be cured for a certain period of time to improve their strength and durability. Finally, the brick blanks are dried and cured to make fly ash block bricks that meet the standards.



Structure:
Structure of fly ash block brick making machine usually includes several main parts such as feeding system, mixing system, molding system, curing system and control system. The feeding system is responsible for feeding various raw materials into the mixer in proportion, and ensuring the uniform mixing of the raw materials through efficient conveying devices. The mixing system uses high-strength mixing paddles to quickly and effectively mix the raw materials to form a uniform mixture.
The molding system is the core part of the fly ash block brick making machine. It usually adopts a hydraulic molding process to press the mixture into shape in a short time. By controlling the pressure and molding time, the brick making machine can produce bricks of different strengths and specifications to meet market demand.



Brick making machine specifications:

Brick Size (mm)

Model Specification

Motor Power (kW)

Machine Dimensions (mm)

Machine Weight (kg)

Production Capacity (pcs/h)

390x190x190

DF3-15A

6.5

1500 x 800 x 1700

560

2000

240x115x53

DF3-20B

7

1700 x 900 x 1320

680

5000

300x150x100

DF4-35B

8.5

2500 x 1200 x 2000

800

15000

400x200x200

DF4-50A

11

2600 x 1800 x 2100

960

10000

400x150x200 DF4-40A 13 2800 x 1820 x 2280 1120 30000
