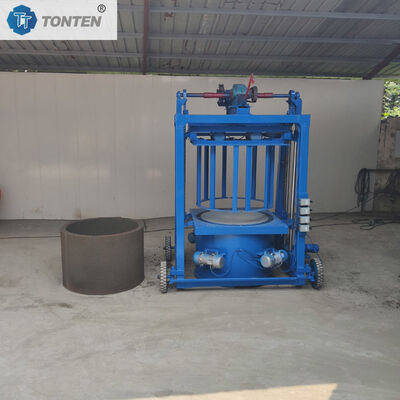

Concrete Well Pipe Well Ring Preformed Cement Well Drilling Rig Machine

Concrete Well Pipe Well Ring Preformed Cement Well Drilling Rig Machine

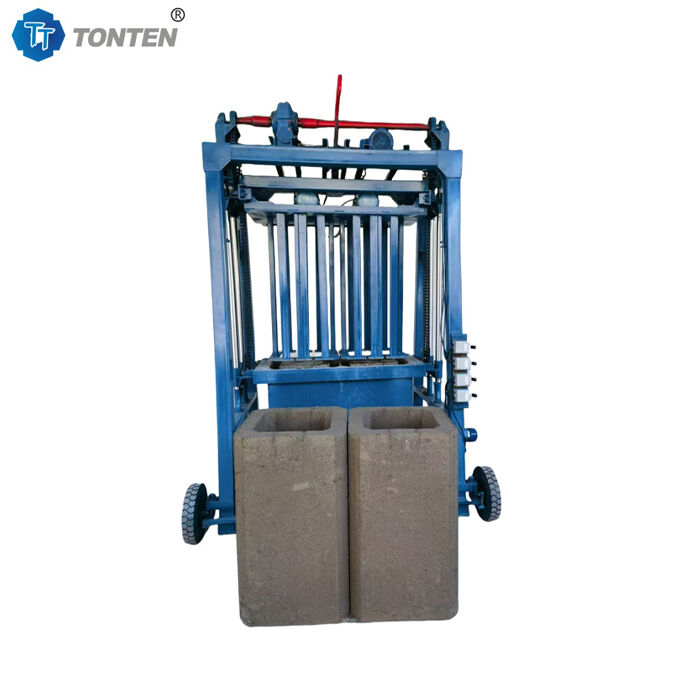

Main structural components of a well ring brick machine:

Mold System:
Upper Mold (Pressure Head): Usually connected to the vibrator, used to compact concrete and shape the upper surface and inner wall of the product.

Lower Mold (Mold Box): Fixed on the forming station of the well ring brick machine, determining the shape, diameter, and height of the product. The mold can be quickly changed to adapt to the production needs of different specifications (e.g., Φ700, Φ1000, etc.). The mold is usually made of high-strength alloy steel after heat treatment, making it wear-resistant and long-lasting.

Material Feeding and Placing System:
Storage Hopper: Stores pre-mixed dry-hard concrete mixture.

Placing Trolley/Placing Device: Evenly and quickly spreads the material within the well ring brick machine mold, crucial for ensuring uniform product density.

High-Frequency Vibrator: Installed on the pressure head or mold box. During operation, it generates high-frequency, low-amplitude directional vibration, allowing concrete particles to flow fully, arrange tightly, expel air, and achieve initial compaction.

Hydraulic pressurization device: While vibrating, a hydraulic cylinder drives the upper mold to apply continuous and stable high pressure (adjustable, typically 1-3 MPa) to the concrete, achieving the final high-density molding. This is the origin of the name "brick machine," and its principle is similar to the "combination of pressure and vibration" in brick-making machines.

Electrical control system: The core is a PLC and a human-machine interface (touch screen). The operator can set parameters such as formula, molding cycle, and pressure on the screen. The control system automatically completes the entire cycle from material placement, vibration, pressurization, demolding to brick output, realizing automated production of the well ring machine.

Main Application Areas:

Municipal Drainage Networks: Manhole frames and shafts for stormwater and sewage inspection wells, sedimentation wells, and drop manholes.

Telecommunications and Power Engineering: Cable inspection wells and fiber optic junction box foundations.

Municipal Public Utilities: Water supply valve wells, gas valve wells, and maintenance wells for heating networks.

Road Engineering: As a component of roadside drainage inlets.

Landscape Architecture: Manhole frame machines are used for drainage facilities under green spaces.

Precast Assembled Components: Manhole frame machines produce other precast concrete components requiring high strength and ring structures.
