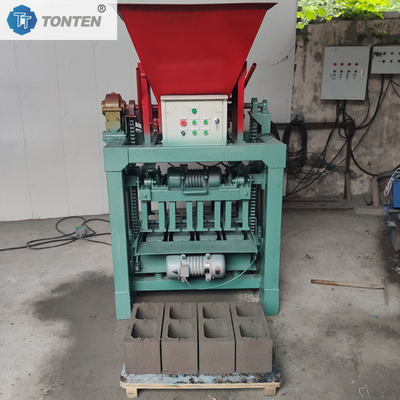

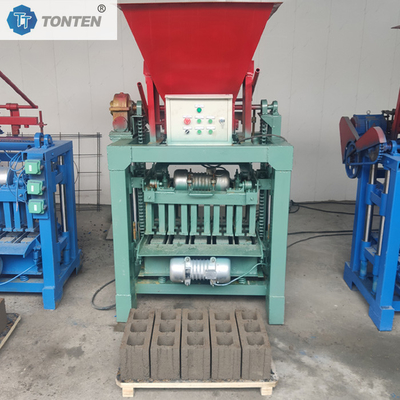

Hollow Block Molding Machine Eight-hole Fired Brick Making Machine
Product Details:
| Place of Origin: | China |
| Brand Name: | TONTEN |
| Model Number: | DF4-35B |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden box packaging |
| Delivery Time: | 10 days |
| Payment Terms: | T/T |
| Supply Ability: | 1 set about one week |
|
Detail Information |
|||
| Dimension: | 1250×850×1900 Mm | Vibration System: | Variable Frequency Automatic Control |
|---|---|---|---|
| State: | New | Production Capacity: | 1-14 Brick |
| Application: | Building Construction | Color: | Multi Color |
| Method: | Hydraulic Pressure | Materials: | Concrete / Sand / Cement / Fly Ash |
| Highlight: | Hollow Block Molding Machine,Fired Brick Making Machine,Eight Hole Brick Making Machine |
||
Product Description
Hollow Block Molding Machine Eight-hole Fired Brick Making Machine
This 4-35B hopper block molding machine is a new machine model researched in our factory, by equipping the machine with a hopper to achieve easy and fast feeding, and can also be connected to a mixer and conveyor belt to achieve a semi-automated production line. For buyers, this machine is ideal for improving productivity and saving labor.
Use of raw materials: the use of sand, stone, cement, can be added to a large number of fly ash, slag, steel slag, coal gangue, ceramic granules, perlite, wine lees, gypsum powder, feed and other industrial waste.
Hollow Block Molding Machine Main Parameters
| Model | 4-35B |
| Voltage |
220V-380V |
| Packing weight |
800KG |
| Machine output | 400-600 times/shift |
| Machine power |
5.5KW |
| Number of bricks (common) |
Hollow bricks 400*200*200 (2 bricks/time) |

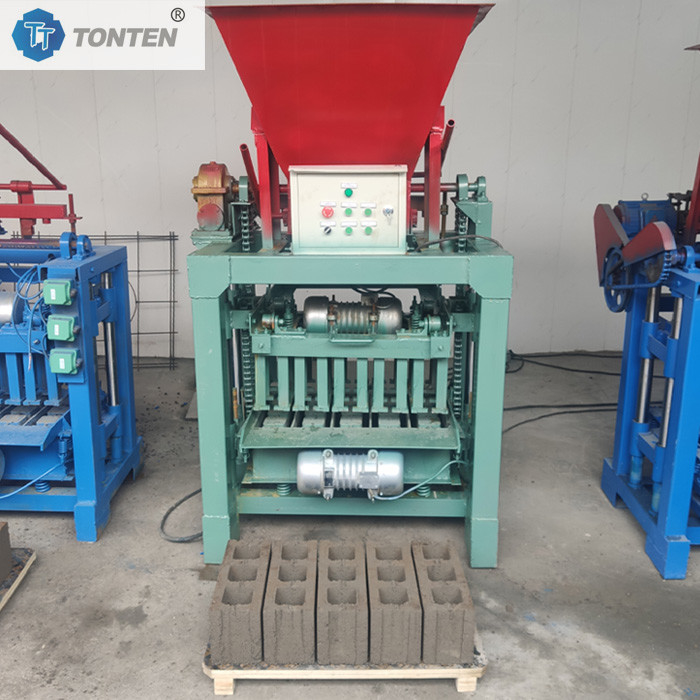

Hollow Block Molding Machine
How To Use Hopper Block Molding Machine
Equipment Installation: Install and debug the machine according to the instruction manual.
Raw material preparation: Mix the raw materials (cement, sand, concrete, fly ash, etc.) according to the proportion and make sure the raw materials are mixed evenly.
Operation steps: Start the equipment through PLC control system, it can be automatically feeding, mixing, molding and discharging.
Maintenance: Workers are needed to check and clean the equipment regularly and replace the worn parts in time so as to prolong the service life of the machine.
Advantages 4-35B Hopper Block Molding Machine:
①Saving labor and material resources, improving production efficiency, environmental protection and energy saving.
②High strength and good compactness of the bricks, can be stacked up at any time to dry.
③Any replacement of molds can be made, which really realizes the multi-purpose of one machine.
Applications 4-35B Hopper Block Molding Machine:
① Construction:
Used in residential, commercial and infrastructure projects to produce building blocks.
② Landscaping:
Ideal for producing decorative blocks for outdoor landscaping, trails and walls.
③For production facilities:
Suitable for projects specializing in the production of blocks for various uses.
④ For sustainable construction:
Durable masonry blocks can be produced using local materials, supporting environmentally friendly green practices.
Packaging is generally bare packaging or plastic film wrapped according to customer needs, the whole brick machine equipment wrapped to prevent water or moisture; loading, the use of containers within the strengthening ring and special equipment will be tightened brick machine, to prevent damage to the brick machine caused by transportation bumps.
If you have specific questions about particular models, operational guidelines, or maintenance tips, feel free to ask!
