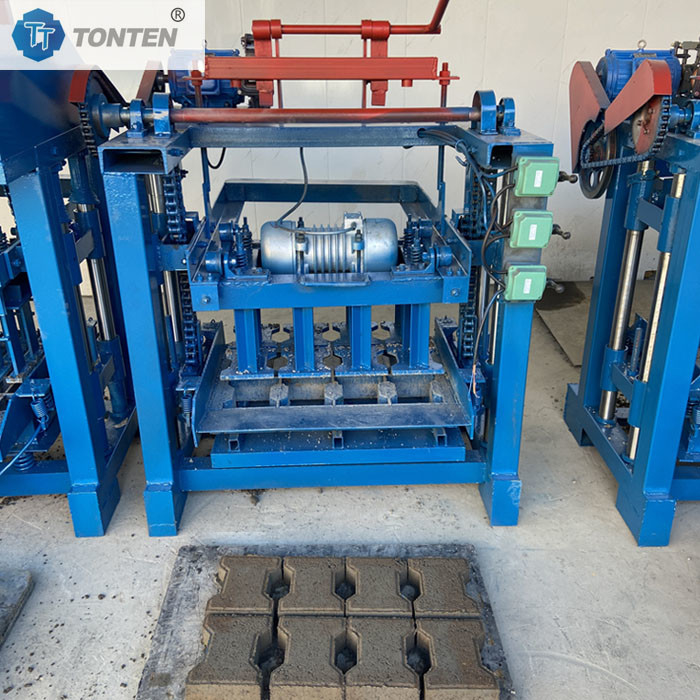

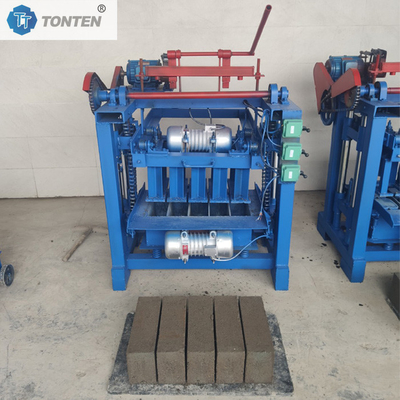

Road Brick Making Machine Semi-automatic Concrete Block Molding Machine
Product Details:
| Place of Origin: | China |
| Brand Name: | TONTEN |
| Model Number: | DF4-35A |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wood case packing or customized |
| Delivery Time: | 10 days |
| Payment Terms: | T/T |
| Supply Ability: | 1-2 set about 7-10 days |
|
Detail Information |
|||
| Automatic: | Yes | Operator: | 1-2 People |
|---|---|---|---|
| Customized: | Customized | Temperature: | Controlled |
| Style: | Modern | Application: | Construction Industry |
| Mould: | Customization/1set Free | Marketing Type: | New Product 2025 |
| Highlight: | Road Brick Making Machine,Concrete Block Molding Machine,Semi-automatic Brick Making Machine |
||
Product Description
Road Brick Making Machine Semi-automatic Concrete Block Molding Machine
The road tile making machine is a professional mechanical equipment that focuses on producing various types of tiles for laying roads, squares, sidewalks and other areas. It has a compact and stable body structure, occupies a small area, and is easy to install and operate in different places. The brick making machine works in coordination with advanced mechanical transmission and hydraulic systems, and can efficiently process raw materials such as cement, sand, and gravel into tiles of various specifications, shapes and colors.
Road Brick Making Machine Main Parameters
| Item | Main Parameters |
| Vibrating motor power | 1.1KW×3 +2.2KW |
| Molding cycle | 35s |
| Power of the whole machine | 5.5KW |
| Electrical voltage | 220V-380V |
| Number of bricks (commonly used) | Hollow brick 400*200*200 (4 pieces/time) Hollow brick 400*150*200 (5 pieces/time) Hollow brick 400*100*200 (7 blocks/time) Standard brick 240*115*50 (24 blocks/time) |
| Brick machine size (mm) | 1250×750×1250 |
| Net weight | 680KG |
Advantages:
① Efficient production: equipped with high-power motors and optimized transmission systems, the production cycle is short, and a large number of tiles can be produced per hour to meet the supply needs of large-scale projects.
② Diversified molds: It can adapt to a variety of molds and can produce a variety of tile styles such as wave patterns, checkered patterns, and imitation stone patterns to meet the needs of different landscape designs and architectural styles.
③ Energy saving and environmental protection: Energy-saving motors and reasonable energy consumption design are used to reduce power consumption. At the same time, industrial waste slag, construction waste, etc. can be used as raw materials in large quantities to achieve resource recycling and reduce environmental pollution.
④ Reliable quality: Through precise pressure control and vibration system, the internal structure of the tiles is dense, with high compressive strength and strong wear resistance, which prolongs the service life of the tiles and reduces the cost of later maintenance.
Usage:
Municipal road engineering: used for paving urban main and secondary roads and sidewalks to improve the beauty of roads and the comfort of pedestrians.
Square construction: creating characteristic ground paving for urban squares and commercial squares to enhance the visual effect and carrying capacity of squares.
Garden landscape: paving around parks, community garden paths and flower beds to create a natural and harmonious landscape atmosphere.
Parking lot: producing tiles with certain carrying capacity and drainage functions for parking lot ground construction to achieve orderly parking of vehicles and beautiful site.
