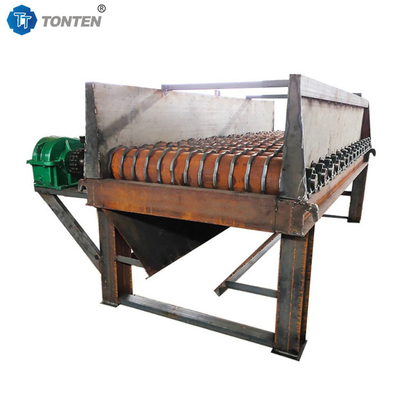

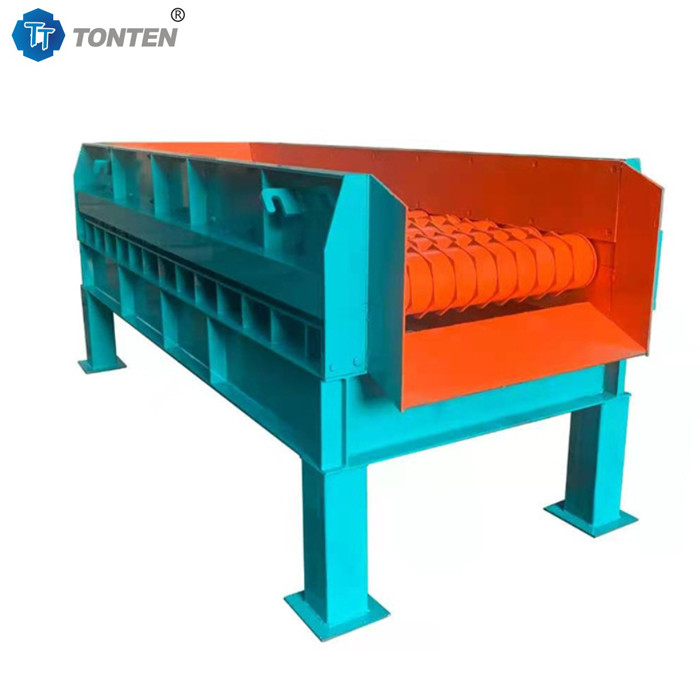

Debris Removal Separator Screen Separator Dirt and Stone Separating Machine
Product Details:
| Place of Origin: | Henan |
| Brand Name: | TONTEN |
| Model Number: | GZS0816 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Export standard wooden box packaging or container |
| Delivery Time: | 10-20 work days |
| Payment Terms: | T/T |
| Supply Ability: | 20 sets per month |
|
Detail Information |
|||
| Product Name: | Debris Separator | Capacity: | 30-1000t/h |
|---|---|---|---|
| Function: | Screening\separation\sieving | Voltage: | 220V/380V |
| Dimension: | According To Different Models | Application: | Ore, Sand And Gravel Separator |
| Color: | As Requirement | Advantage: | Easy Opperation |
| Highlight: | Stone Separating Machine,Debris Removal Separator Screen,Dirt Separating Machine |
||
Product Description
Debris Removal Separator Screen Separator Dirt and Stone Separating Machine
Introduction:
The mud and stone separation disc screen drives the rollers to move regularly through the motor. The discs arranged on the rollers move the materials forward. The gap between the rollers is adjusted according to the size of the separated materials. At the same time, the number of rollers can be increased or decreased according to the production demand of the user. The box can also be equipped with a fan to dry the wet materials. That is why the disc screen can separate the stones with soil, The use of this mud stone separation equipment can effectively solve some problems in mining, and can well replace the roller screen and vibrating screen, doubling the processing and production efficiency.
Feature:
Centralized transmission, strong powerThe screen shaft adopts centralized transmission, with strong power, high synchronization of the screen shaft and stable material operation. Good sealing performanceThe shaft end of the mud stone separator is equipped with rubber sealing ring, which has good sealing performance. The screen body and each connecting surface do not have dust (particle) leakage. Adopt segmented structureThe sealing cover of the box is of segmented structure. When replacing and repairing the screen shaft, screen plate and anti-corrosion lining plate, it is only necessary to remove the corresponding sealing cover. Improve screening capacity of equipmentThe staggered installation of the two types of screens makes the materials move in a sinusoidal shape and improves the screening capacity of the equipment.
Parameter:
| Model | Power | Shaft Clearance | Feed Particle Size |
| GZS0816 | 7.5-1.1 | 10-50 | ≤20 |
| GZS1020 | 11-15 | 10-50 | ≤25 |
| GZS1230 | 18.5-30 | 15-70 | ≤30 |
| GZS1235 | 22-37 | 20-80 | ≤30 |
| GZS1340 | 37-45 | 20-90 | ≤33 |
| GZS1445 | 45-55 | 25-100 | ≤35 |
| GZS1550 | 55-75 | 25-100 | ≤38 |
| GZS1655 | 75-90 | 30-100 | ≤40 |
Working Principle:
The interlocking shaft with irregular shape device is driven by the motor for overturning movement. The screen surface is composed of many linear rotary bearings. There are equal screen plates arranged on the roller. The roller is driven by the gear to drive the wheel chain to rotate. The direction of rotation is consistent with the direction of raw material flow. There is a gap between the shaft and the shaft. The irregular wear-resistant device embedded on the shaft holds the large grain materials forward, Because the screen shaft is designed according to different running directions, the speed of the material is faster when it runs in the place with high running direction; When the material is running in a lower direction, the speed is slower. When the two materials running at different speeds meet at a certain place on the screen surface, they start to operate axially. In this way, the materials are evenly distributed on the screen surface, and the screening efficiency is improved. The small particle materials fall into the bottom of the separator and are sent out by the belt conveyor.
Product Details:
Copper core motor:
Copper core motor is adopted, with sufficient power, low noise and strong overload resistance.
Screen design:
Special screen design ensures that materials will not be blocked during screening.
Modular design:
Modular assembly, can be lengthened or shortened according to the material conditions, convenient for maintenance and structural adjustment.
One machine for multiple use:
Automatic material removal, continuous operation, can play the functions of transportation, separation and screening under different industrial and mining conditions, and realize multi-purpose of one machine.
Application:
Coal, mining, building materials, metallurgy, electric power, water conservancy, light industry and chemical industry,etc.
