Cable Wire Recycling Machine Copper Plastic Separation Copper Rice Machine
Product Details:
| Place of Origin: | China |
| Brand Name: | TONTEN |
| Model Number: | TT-600 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Small model export wooden packaging, large model load in container |
| Delivery Time: | 10-15 working days |
| Payment Terms: | T/T |
| Supply Ability: | 20 Sets/Month |
|
Detail Information |
|||
| Weight: | 3200kg | Application Areas: | Crushing And Sorting Of Various Waste Wires |
|---|---|---|---|
| Automation Level: | Fully Automatic | Performance: | High Efficiency |
| Type: | Dry Copper Rice Machine | Environmental: | Equipped With Dust Removal |
| Machine Structure: | Crushing, Sorting, Dust Removal, Etc. | Feed Side Length: | 80mm |
| Highlight: | Cable Wire Recycling Machine,Copper Wire Recycling Machine,Copper Plastic Separation Machine |
||
Product Description
Cable Wire Recycling Machine Copper Plastic Separation Copper Rice Machine
Working Principle:
1. Feeding: The waste cables are fed through a conveyor belt or a manual feeding port to ensure uniform feeding. When entering the copper rice machine, the blade inside the machine cuts it into small sections for subsequent processing. A double-shaft shredder can also be added for coarse crushing, and then it enters the fine crusher for further crushing to completely separate the copper wire from the plastic sheath.
2. Crushing: The cut cables are further crushed in the crushing chamber to form smaller particles. This process can be achieved by high-speed rotating blades.
3. Separation: The crushed mixture is separated by a vibrating screen or an airflow separation device. In this process, the density difference between copper and plastic is used to blow out the lighter plastic through the airflow generated by the fan, and the heavier copper particles fall. Copper particles and plastic particles are effectively separated. Copper has a larger density and will settle, while plastic will float with the airflow.
4. Vibration screening: Equipped with a vibrating screen, it is graded according to particle size to improve sorting accuracy.
5. Collection: The separated copper rice (pure copper particles) and plastic particles can be recycled separately. They are collected into different containers for subsequent processing and sale.
Structural Advantages of Copper Rice Machine Equipment:
1. The overall design of the copper rice machine is compact, with a small footprint, suitable for various production environments, and easy to install and move.
2. Optimized blade system for efficient crushing: The blade design has been optimized to effectively cut and crush waste cables in a short time, improving crushing efficiency.
3. Good cooling system to reduce temperature: The equipment is equipped with an effective cooling system to reduce equipment damage caused by high temperature and ensure stable operation.
4. Optimized blade system for efficient crushing: The blade design has been optimized to effectively cut and crush waste cables in a short time, improving crushing efficiency.
5. The fully dry environmentally friendly process does not require water, completely solving the water pollution problem of wet sorting, and is equipped with a dust removal system (dust removal efficiency ≥ 99%)
Copper Rice Machine Specification:
|
Machine model |
Feed size(mm) |
Process capacity(kg/h) |
Motor power(kw) |
Dimensions(mm) |
Weight(kg) |
|
TTCR-400 |
0.5-40 |
150-200 |
22 |
2600x1600x2300 |
2000 |
|
TTCR-600 |
0.5-40 |
200-300 |
42 |
3700x2200x2200 |
3200 |
|
TTCR-800 |
0.5-40 |
300-600 |
57 |
4000x2000x2200 |
3800 |
| TTCR-D800 | 0.5-40 | 400-800 | 85 | 8700x5000x2600 | 4500 |
|
TTCR-1000 |
0.5-40 |
800-1000 |
97 |
9000x5000x2600 |
5800 |

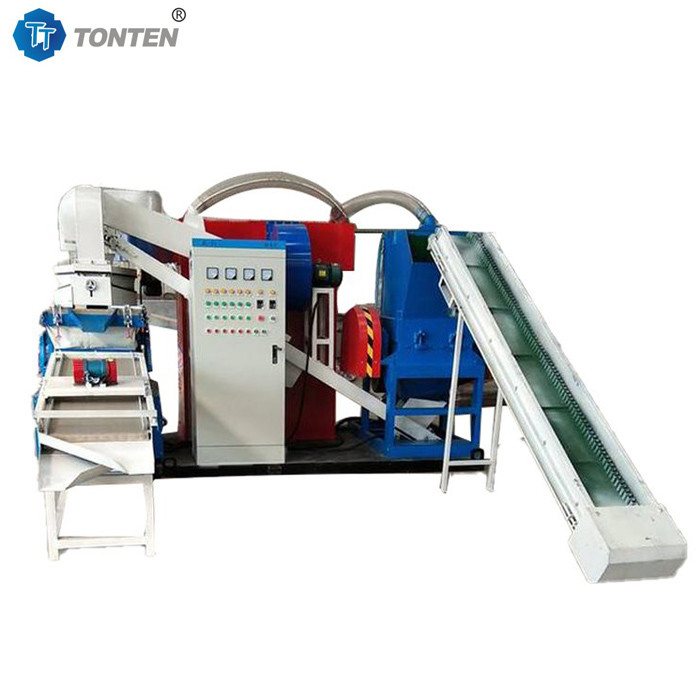

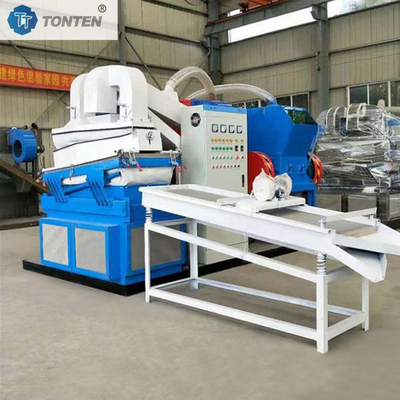

Copper Separation Copper Rice Machine Photo:
