Copper Cables Granulator Machine Copper Coated Wire Sorting Strip Line
Product Details:
| Place of Origin: | China |
| Brand Name: | TONTEN |
| Model Number: | TT-D800 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | 6000-8000USD/Set |
| Packaging Details: | Small model export wooden packaging, large model load in container |
| Delivery Time: | 10-15 working days |
| Payment Terms: | T/T |
| Supply Ability: | 20 Sets/Month |
|
Detail Information |
|||
| Capacity: | 400-800kg/h | Machine Dimension: | 8700x5000x2600mm |
|---|---|---|---|
| Machine Weight: | 4500kg | Used Material: | Copper Wire,Copper Cables |
| Discharge: | Pure Copper,copper Granulator | Environmental: | Equipped With Dust Collector Environmental Protection Device |
| Copper Cables Granulator Machine Material: | High-quality Steel | Noise: | Relatively Very Low |
Product Description

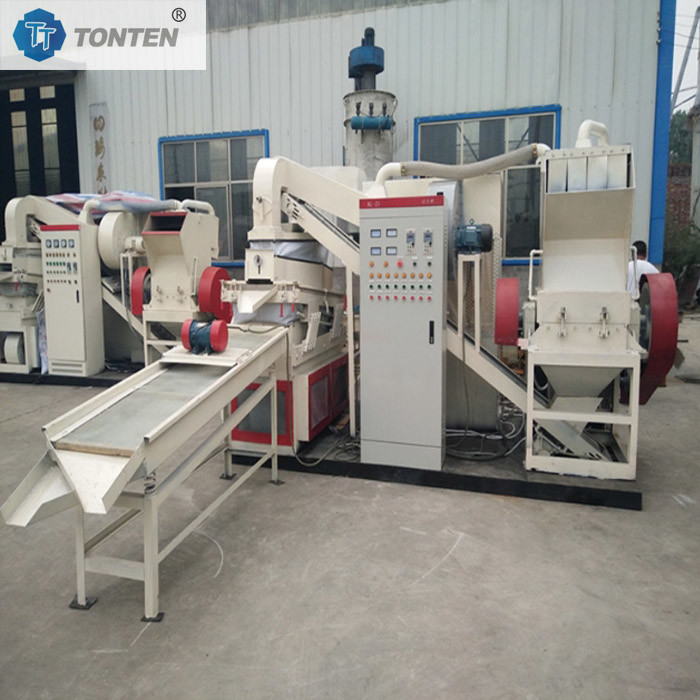

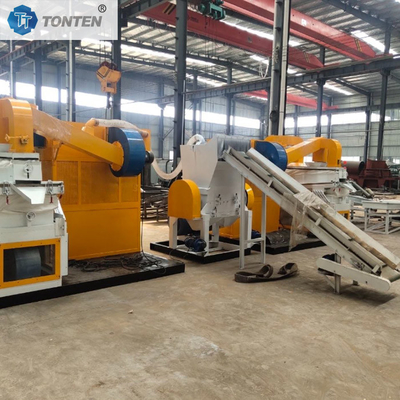

Copper Cables Granulator Machine Copper Coated Wire Sorting Strip Line
Workflow:
1. Crushing stage: The copper cables granulator machine first feeds the wires and cables into the crushing system. Here, they are subjected to strong mechanical forces, such as being crushed by rotating blades or hammers. This breaks the cables into smaller pieces for subsequent separation. For example, large-diameter cables are first cut into small segments and then further broken into particles with a diameter of several millimeters.
2. Separation stage: After crushing, the mixture of copper and plastic particles enters the separation system. Wind separation technology is usually used. The wind separator uses the difference in specific gravity between copper and plastic, and uses air flow to blow the lighter plastic particles to one side and the heavier copper particles to the other side to achieve preliminary separation. In some advanced models, electrostatic separation is also used. Due to the different electrical properties of copper and plastic, they are separated under the action of the electrostatic field.
3. Dust removal stage: Dust is generated during the crushing and separation process. The dust removal system consists of a dust collection fan and a dust collection bag, which inhales dust-laden air, collects dust in the dust collection bag after filtration, and discharges clean air into the atmosphere to meet environmental protection requirements.
Application fields of copper wire granulator:
Scrap cable recycling: Copper wire granulator is widely used in scrap cable recycling plants to process large amounts of scrap copper-clad wires and cables, recycle precious copper resources, and reduce environmental pollution.
Scrap metal recycling: In scrap metal recycling enterprises, copper wire granulator is used to process copper-containing scrap metal, separate copper from other non-metallic materials, and increase the economic value of scrap metal.
Resource recycling industry: In the broader resource recycling industry, copper wire granulation recycling production line is an important equipment.
Copper Rice Machine Specification:
|
Machine model |
Feed size(mm) |
Process capacity(kg/h) |
Motor power(kw) |
Dimensions(mm) |
Weight(kg) |
|
TTCR-400 |
0.5-40 |
150-200 |
22 |
2600x1600x2300 |
2000 |
|
TTCR-600 |
0.5-40 |
200-300 |
42 |
3700x2200x2200 |
3200 |
|
TTCR-800 |
0.5-40 |
300-600 |
57 |
4000x2000x2200 |
3800 |
| TTCR-D800 | 0.5-40 | 400-800 | 85 | 8700x5000x2600 | 4500 |
|
TTCR-1000 |
0.5-40 |
800-1000 |
97 |
9000x5000x2600 |
5800 |
