Paving Stone Block Bricks Cement Porous Bricks Punching Making Machine
Product Details:
| Place of Origin: | China |
| Brand Name: | TONTEN |
| Model Number: | DF4-35B |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wood case packing or customized |
| Delivery Time: | 10 days |
| Payment Terms: | T/T |
| Supply Ability: | 1-2 sets about 10 days |
|
Detail Information |
|||
| Method: | Hydraulic Pressure | Condition: | New |
|---|---|---|---|
| Automatic Grade: | Semi Automatic | Advantage: | Multi Function |
| Marketing Type: | New Product 2024 | After Warranty Service: | Online Technique Support |
| Usage/Application: | Construction | Block Type: | Hollow Or Solid Concrete Brick Machine |
| Highlight: | Punching Making Machine,Cement Porous Bricks Making Machine,Paving Stone Block Bricks Making Machine |
||
Product Description

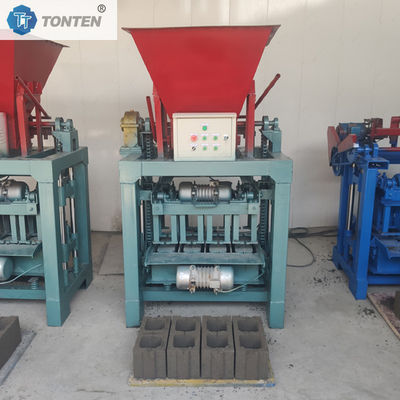

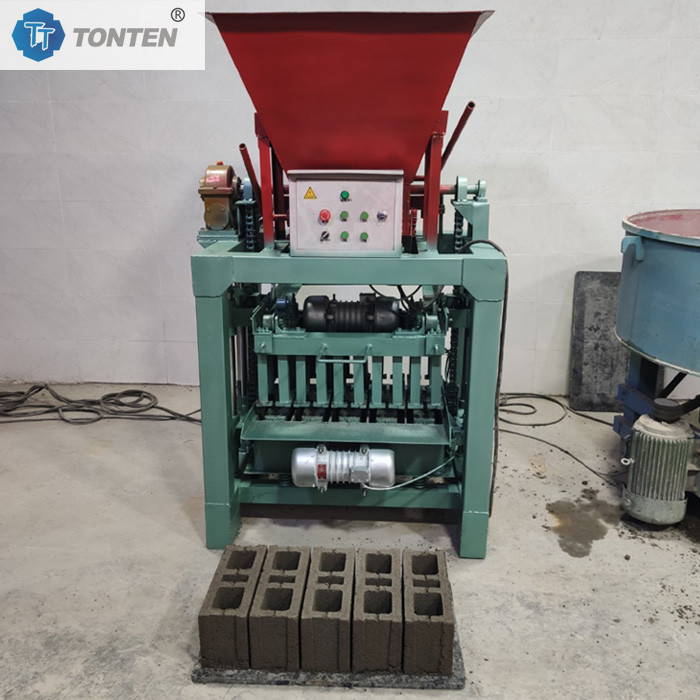

Paving Stone Block Bricks Cement Porous Bricks Punching Making Machine
The paving block brick cement porous brick making machine is an automated equipment specifically used for producing building materials such as cement porous bricks, permeable bricks, grass planting bricks, and slope protection bricks. This device uses mold forming technology to mix raw materials such as cement, sand and gravel, and fly ash and press them into shape. It is widely used in fields such as municipal roads, landscaping, and water conservancy engineering. Its core characteristics are high efficiency, energy saving, and environmental protection, which can meet the customized production needs of different specifications and hole types.
There are various types of raw materials, including sand, gravel, cement, and a large amount of industrial waste such as fly ash, slag, steel slag, coal gangue, ceramic particles, perlite, distiller's grains, gypsum powder, and feed can be added.
Paving Stone Cement Porous Bricks Making Machine Main Parameters
| Item | Main parameters |
| Brick machine size (mm) | 1250×850×1900 |
| Net weight | 720KG |
| Packing size (mm) | 1300×900×1350 |
| Packing weight | 800KG |
| Vibrating motor power | 1,1KW×3+2.2KW |
| Forming cycle | 35 seconds |
| Whole machine power | 5.5KW |
| Electrical voltage | 220V-380V |
| Number of bricks out (commonly used) |
Hollow brick 400*200*200 (2 blocks/time) Hollow brick 400*150*200 (5 blocks/time) |
Paving Stone Cement Porous Bricks Making Machine More Informations
Paving Stone Cement Porous Bricks Making Machine Main Features
① Multi-functionality
It can produce many types of bricks: porous bricks, permeable bricks, hollow bricks, curbstones, grass-planting bricks and so on.
Support different specifications (e.g. 300×300mm to 600×600mm) and hole designs (round, square, shaped holes).
② High degree of automation
Equipped with PLC control system, it realizes the integrated operation of automatic batching, mixing, pressing and demoulding.
Easy to operate, reduce manual intervention and improve production efficiency.
③ Energy saving and environmental protection
Adopting hydraulic drive system, low energy consumption and low noise.
High utilization rate of waste residue (e.g. fly ash, construction waste, etc.), in line with the standard of green building materials.
④ Solid structure
The body is welded with high-strength steel, which is wear-resistant and has a long service life.
Convenient mold replacement to meet diversified production needs.
⑤ Safe and reliable
Equipped with emergency braking device and protection system to guarantee the safety of operators.
Paving Stone Cement Porous Bricks Making Machine Advantage
① Efficient production
Hydraulic system for fast pressing, short single cycle time, suitable for large-scale continuous production.
② Cost saving
Low raw material cost (can be mixed with 30%-50% waste residue), low energy consumption and low maintenance cost.
③ Stable quality
Precision mold ensures consistent brick size and compressive strength ≥20MPa (higher standard can be customized).
