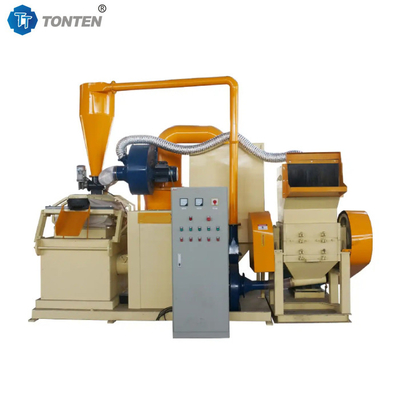

Cost-effective Scrap Copper Processor, Low Emission Copper Cable Recycler
Product Details:
| Place of Origin: | China |
| Brand Name: | TONTEN |
| Model Number: | TT-TXH10 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1SET |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Container |
| Delivery Time: | 10-15 work days |
| Supply Ability: | 20 units/month |
|
Detail Information |
|||
| Copper Rice Purity: | After Electrostatic Separation 99.9% | Residual Copper Content: | Very Low |
|---|---|---|---|
| Discharge: | Pure Copper,copper Granulator | Motor Type: | National Standard |
| Energy Saving: | Low Energy Consumption | Environmental: | Equipped With Dust Removal |
| Scope Of Application: | Copper Wire, Aluminum Wire | Used Material: | Copper Wire,Copper Cables |
Product Description
Cost-effective Scrap Copper Processor, Low Emission Copper Cable Recycler
Product Introduction
The Copper Wire Recycling System features exceptional separation prowess, adeptly segregating copper and plastic from a broad spectrum of copper wire residues (including bare copper conductors, enameled wires, automotive wiring looms, and more) to enable precision material recuperation. It accommodates diverse copper wire waste streams, addressing varied recycling scenarios with versatility. Engineered with an energy-optimized design, it curtails power consumption while upholding high throughput efficiency. The process operates emission-free, integrated with noise mitigation mechanisms, and employs a dry physical separation technique—eliminating water usage and averting environmental contamination risks.
Cutting-Edge Material Separation
Leveraging state-of-the-art separation technologies, it ensures complete dissociation of copper and plastic, delivering high-purity recycled materials and maximizing resource recovery efficiency.
Versatile Scrap Adaptability
Engineered to process varied copper wire residues—including bare copper conductors, enameled wires, automotive wiring looms, etc.—it cater to cross-industry recycling requirements with unmatched flexibility.
Eco-Conscious Engineering
Designed for energy efficiency, it operates with low power consumption, zero emissions, and minimized noise output. The dry separation mechanism eliminates water reliance, ensuring full compliance with eco-friendly production standards.
Working Principle

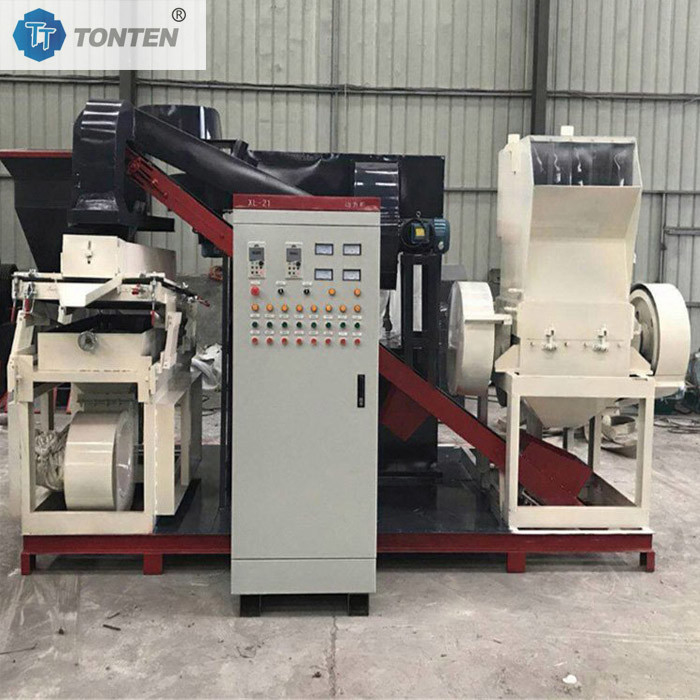

The copper rice machine is a self-automated processing system that initiates real-time operational monitoring upon startup to ensure consistent performance. Requiring only single-pass feeding, the equipment integrates material feeding units, granulation crushers, chain-driven conveyors, air separation systems, vibratory screening beds, and dust extraction modules. Waste copper wires are fed onto the conveyor belt, where they are crushed into granular fragments before being sorted via an air-density separation mechanism, yielding high-purity copper pellets ("copper rice") and recycled plastic fractions.
Parameter List
| Model | TR - 100 (Small - scale) | TR - 300 (Medium - scale) | TR - 500 (Large - scale) |
| Static Pressure | 8 - 10KV | 8 - 10KV | 8 - 10KV |
| Rotating Motor | 1.1kw/roller (4 rollers in total) | 1.1kw/roller (6 rollers in total) | 1.1kw/roller (8 rollers in total) |
| Machine Type (Separation Method) | Electrostatic separation | Electrostatic separation | Electrostatic separation |
