Copper Plastic Separation Recycling Copper Wire Granulator Machine
Product Details:
| Place of Origin: | China |
| Brand Name: | TONTEN |
| Model Number: | TT-800 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | USD 8000/Set |
| Packaging Details: | Small model export wooden packaging, large model load in container |
| Delivery Time: | 10-15 working days |
| Payment Terms: | T/T |
| Supply Ability: | 20 Sets/Month |
|
Detail Information |
|||
| Application: | Copper Plastic Separation Recycling | Capacity: | 400-800kgs/hour |
|---|---|---|---|
| Plant Size: | 8700x5000x2600mm | Power: | Total 85kw |
| Qty Of Blade: | 14 Pieces | Machine Weight: | 4.5T |
| Principle: | Gravity Separation | Feed Size: | < 300 |
Product Description
Copper Plastic Separation Recycling Copper Wire Granulator Machine
Working Principle of the Copper Wire Recycling and Granulating Machine:
Feeding: Scrap cable or copper wire is fed into the machine through the feed port.
Crushing: The cables are first crushed by the crusher, cutting longer cables into smaller pellets for easier processing.
Separation: The crushed material enters a separation system. This system typically includes a vibrating screen, an air separator, or a water washing device, which separates the copper and plastic through gravity, wind, or water flow.
Granulation: The separated copper and plastic particles are granulated separately to form smaller pellets or granular materials for easier storage and transportation.
Discharge: The processed copper and plastic particles are discharged separately through the discharge port, completing the entire recycling process.
Copper Wire Recycling and Granulating Machines are widely used in the following fields:
Scrap Cable Recycling: Primarily used to recover copper and plastic from scrap cables, widely used in the power, telecommunications, and other industries.
Scrap Metal Recycling: Suitable for recycling various scrap metals, including aluminum and iron wire, improving the efficiency of metal resource recovery. Environmental Protection Industry: As environmental protection equipment, copper wire recycling and granulation machines play a vital role in promoting resource recycling and reducing environmental pollution.
Recycled Resource Processing: Recycled copper and plastic can be used to produce recycled materials, which are widely used in the manufacturing and building materials industries.
Small Factories and Workshops: Suitable for small and medium-sized recycling companies and workshops, they can meet their production needs.
Scientific Research and Experimentation: In research institutions and laboratories, copper wire recycling and granulation machines are used for material separation and recovery research.

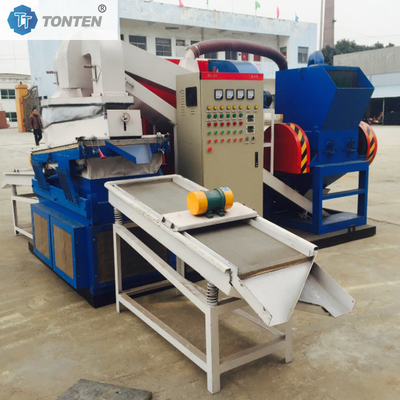

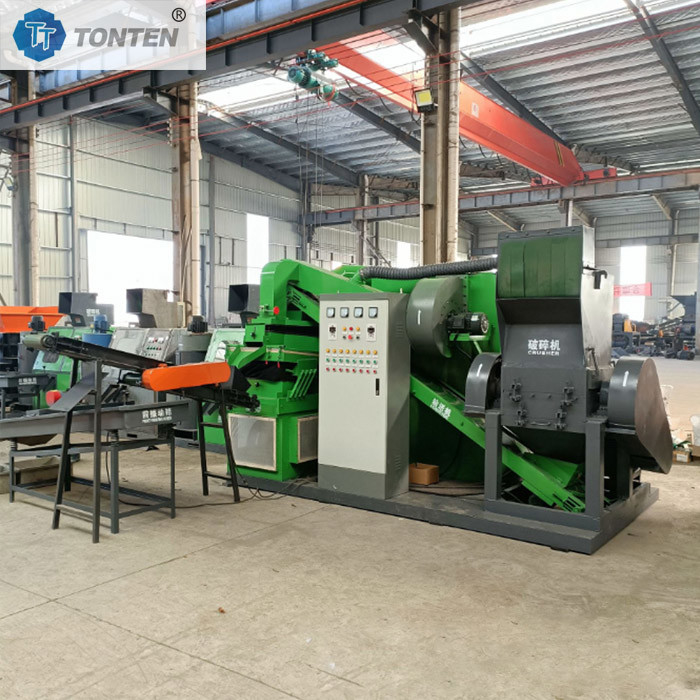

Copper Wire Recycling Line Photo:
Copper Rice Machine Specification:
|
Machine model |
Feed size(mm) |
Process capacity(kg/h) |
Motor power(kw) |
Dimensions(mm) |
Weight(kg) |
|
TTCR-400 |
0.5-40 |
150-200 |
22 |
2600x1600x2300 |
2000 |
|
TTCR-600 |
0.5-40 |
200-300 |
42 |
3700x2200x2200 |
3200 |
|
TTCR-800 |
0.5-40 |
300-600 |
57 |
4000x2000x2200 |
3800 |
| TTCR-D800 | 0.5-40 | 400-800 | 85 | 8700x5000x2600 | 4500 |
|
TTCR-1000 |
0.5-40 |
800-1000 |
97 |
9000x5000x2600 |
5800 |
